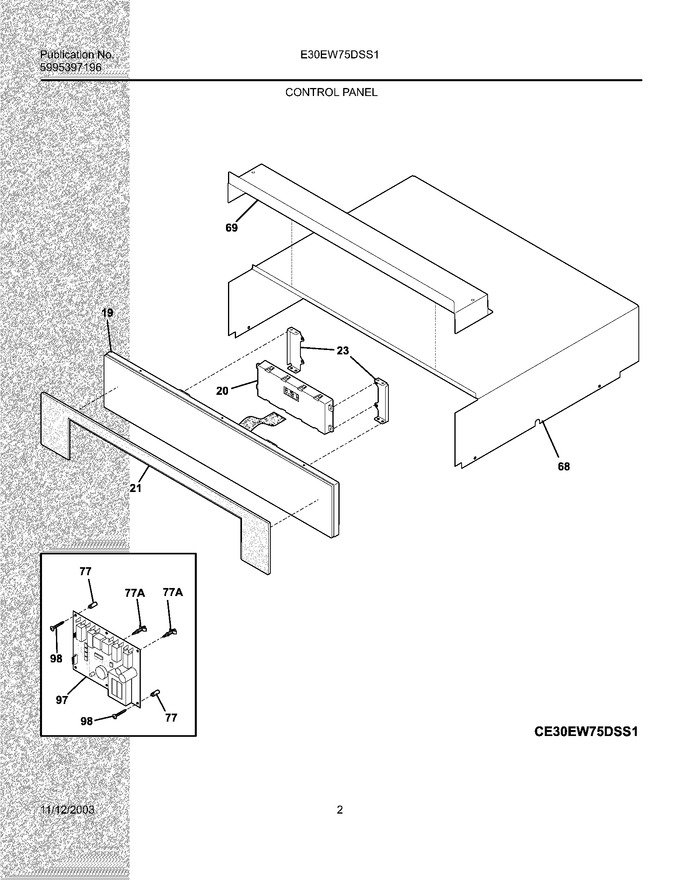

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318244900		Panel,control Assy ,glass ,black ,w/membrane		Appelez-nous	-
21	318240500		Panel,glass Trim ,stainless		Appelez-nous	-
23	318240800		Bracket,timer Mtg ,(2)		Appelez-nous	-
68	318237200		Housing,top/control		Appelez-nous	-
69	318237300		Shield,control		Appelez-nous	-
77	316247900		Spacer,power Board ,(2)				$ 44.65
98	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer,(2)				$ 60.96
F20	316272220		Controller,electronic ,es500		Appelez-nous	-
F97	318022010		Relay Board		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	3201861		Screw,6 X 0.375				$ 0.76
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
