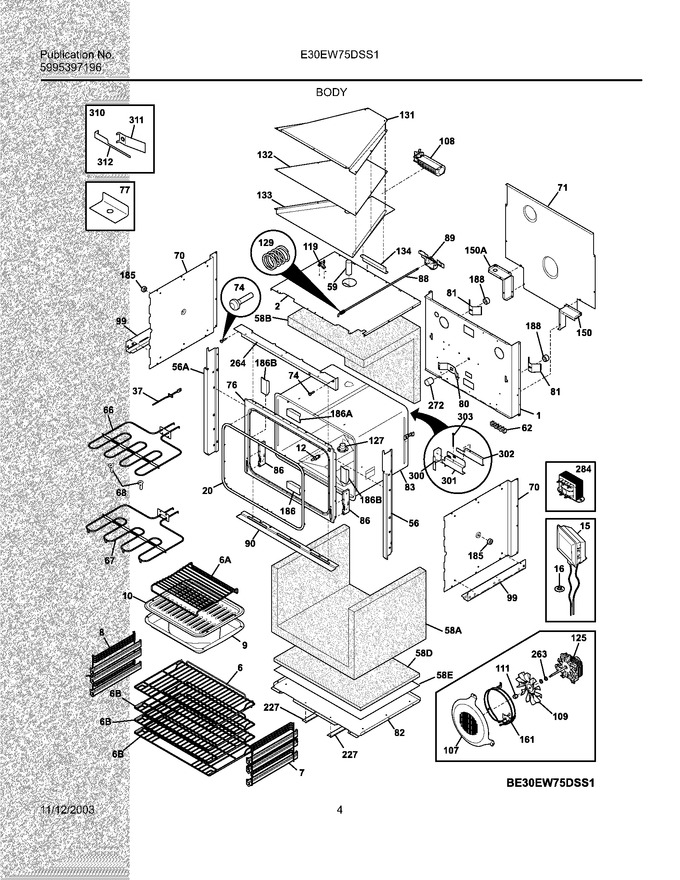

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Body
07 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318066411 | Panel,main Back |
|
- | |||||
| 2 | 318236400 | Shield,oven Top |
|
- | |||||
| 6 | 318240100 | Shelf,oven ,fixed |
|
- | |||||
| 7 | 318240000 | Glide & Support Assy,oven Shelves ,rh |
|
- | |||||
| 8 | 318240001 | Glide & Support Assy,oven Shelves ,lh |
|
- | |||||
| 9 | 318138801 | Pan,broiler |
|
- | |||||
| 10 | 318126401 | Insert,broiler Pan |
|
- | |||||
| 15 | 318241000 | Lamp,oven ,(2) ,halogen |
|
$ 160.23 | |||||
| 16 | 5304435877 | Bushing,halogen Lamp |
|
- | |||||
| 20 | 318239000 | Gasket,oven Door |
|
- | |||||
| 38 | 5304435874 | Plate,covering |
|
- | |||||
| 56 | 318236500 | Trim,side ,rh |
|
- | |||||
| 59 | 318072517 | Duct-oven Vent |
|
- | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 66 | 318177600 | Element,broil ,4000w |
|
- | |||||
| 67 | 318254906 | Element,bake (Replaces: 318177500) |
|
Immediately | $ 259.36 | ||||
| 68 | 5304403015 | Support,element Hanger |
|
$ 35.04 | |||||
| 70 | 318236300 | Shield,insulation ,(2) |
|
- | |||||
| 71 | 318236701 | Panel,wire Shield |
|
- | |||||
| 74 | 5304435878 | Bumper |
|
- | |||||
| 76 | 318056211 | Front,oven |
|
- | |||||
| 77 | 318243600 | Bracket,stopping |
|
- | |||||
| 80 | 5303320846 | Plate,oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring,oven |
|
$ 312.53 | |||||
| 82 | 318072310 | Shield,oven Bottom |
|
- | |||||
| 83 | 318236001 | Liner,oven Assy |
|
- | |||||
| 86 | 318241400 | Receptacle,hinge ,(2) |
|
- | |||||
| 88 | 318118905 | Rod,latch |
|
- | |||||
| 89 | 318095949 | Motor,latch Assy ,w/brkt & Switch |
|
$ 127.16 | |||||
| 90 | 318236601 | Gutter |
|
- | |||||
| 99 | 318055425 | Support,adjustable ,(2) |
|
- | |||||
| 107 | 318219402 | Cover,fan |
|
- | |||||
| 107 | 5304415832 | Screw,8-18 X 0.406 |
|
- | |||||
| 109 | 318398302 | Blade,fan (Replaces: 316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 127 | 318317100 | Adapter,vent Tube ,with Converter (Replaces: 5303310542) |
|
$ 75.13 | |||||
| 128 | 5303311163 | Bushing |
|
- | |||||
| 129 | 5303311164 | Spring |
|
$ 18.95 | |||||
| 131 | 318237400 | Channel,air ,upper |
|
- | |||||
| 132 | 318237600 | Divider,air Channel |
|
- | |||||
| 133 | 318237500 | Channel,air ,lower |
|
- | |||||
| 134 | 318237700 | Support,air Channel |
|
- | |||||
| 150 | 318072212 | Bracket,support ,rh ,access Cover |
|
- | |||||
| 185 | 318531800 | Spacer-oven Shield (Replaces: 318014700) |
|
$ 12.76 | |||||
| 186 | 318236900 | Bracket,oven ,lower ,(2) |
|
- | |||||
| 188 | 318531702 | Spacer (Replaces: 318014110) |
|
$ 9.93 | |||||
| 227 | 318240700 | Bracket,reinforcement ,(2) |
|
- | |||||
| 263 | 316008401 | Washer,fan Motor (Replaces: 316136500) |
|
$ 11.34 | |||||
| 264 | 318239101 | Trim,vent |
|
- | |||||
| 272 | 5303311207 | Tube, Protector |
|
- | |||||
| 284 | 318244500 | Transformer |
|
$ 302.24 | |||||
| 300 | 318089801 | Switch,door,oven Light |
|
$ 77.03 | |||||
| 301 | 318234600 | Support,tongue Mtg |
|
$ 42.47 | |||||
| 302 | 318244200 | Tongue,door Switch |
|
- | |||||
| 303 | 318228400 | Pin,cotter |
|
- | |||||
| 310 | 5304435864 | Kit,cabinet Mtg ,w/instructions |
|
$ 117.60 | |||||
| 311 | 318246000 | · Bracket,cabinet Mtg |
|
- | |||||
| 312 | 318246700 | · Tool,cabinet Bracket |
|
- | |||||
| 56A | 318236501 | Trim,side ,lh |
|
$ 58.14 | |||||
| 58A | 318133788 | Insulation,oven Wrapper ,bottom/sides |
|
- | |||||
| 58B | 318133787 | Insulation,oven Back/top |
|
- | |||||
| 58C | 5303316994 | Insulation,3.81 X 3.13 |
|
- | |||||
| 58D | 318133789 | Insulation,1/2`` Thick ,26.75 X 19 |
|
- | |||||
| 58E | 318235701 | Panel,insulation ,26.75 X 18 ,aluminum |
|
- | |||||
| 6A | 318219500 | Rack,broiler Pan |
|
- | |||||
| 6B | 318240200 | Shelf,oven ,extendable |
|
- | |||||
| F108 | 318073017 | Motor,blower |
|
$ 401.73 | |||||
| F119 | 318004900 | Switch,thermal |
|
$ 60.25 | |||||
| F12 | 808136601 | Switch,light (Replaces: 318089915) |
|
Immediately | $ 44.04 | ||||
| F125 | 318137310 | Motor,convection |
|
- | |||||
| F125 | 318142100 | Washer,motor ,convection |
|
$ 12.39 | |||||
| F128 | 5303311528 | Screw,oval Hd Sq Dr ,6-20ab X 0.625 ,black |
|
- | |||||
| F150 | 318072213 | Bracket,support ,lh ,access Cover |
|
- | |||||
| F161 | 318255511 | Element,convection ,2500 W (Replaces: 318050701) |
|
Immediately | $ 110.20 | ||||
| F186 | 318237000 | Bracket,oven ,upper |
|
- | |||||
| F188 | 131202300 | Screw, 8 X 5/8 (Replaces: 3131048) |
|
Immediately | $ 13.46 | ||||
| F301 | 3051050 | Screw-shoulder |
|
$ 12.29 | |||||
| F311 | 5303325697 | Screw,6-18 X 5/8 ,chrome |
|
- | |||||
| F37 | 316217002 | Probe,oven Temp |
|
Immediately | $ 61.23 | ||||
| NI | 318231700 | Harness,wiring ,main |
|
- | |||||
| NI | 3015722 | Clip-wire Retainer |
|
- | |||||
| NI | 5303308449 | Fastener,wire Tie |
|
- | |||||
| NI | 5304400192 | Retainer Wire |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 5303323277 | Screw (8-18x13/32) |
|
$ 8.66 | |||||
| NI | 316205500 | Nut-10-32 (Replaces: 5303323144) |
|
$ 11.34 | |||||
| NI | 318052197 | Harness,wiring ,halogen Lamp |
|
- | |||||
| NI | 5303323139 | Screw,10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5303325980 | Screw,10-32 X 0.437 |
|
$ 12.76 | |||||
| NI | 318120711 | Switch |
|
$ 87.68 | |||||
| NI | 318078539 | Box & Wires Assy |
|
- | |||||
| NI | 5303323136 | Screw-ground |
|
- |
