SELECT A DIAGRAM

01 - Cover

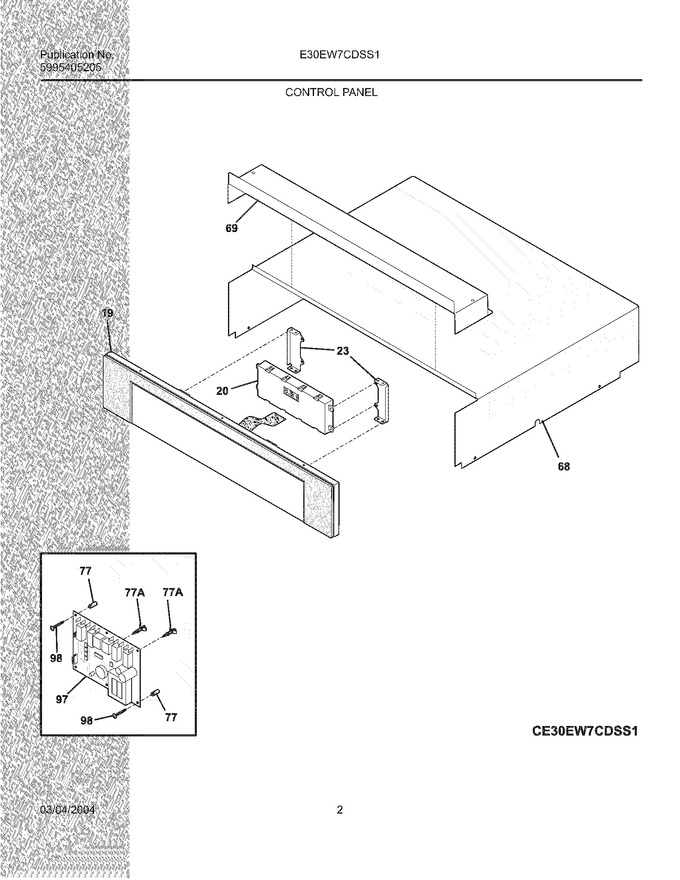

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318244801		Control Panel,assembly ,w/stainless Trm		Appelez-nous	-
21	318240500		Panel,glass Trim ,stainless		Appelez-nous	-
23	318240800		Bracket,timer Mtg ,(2)		Appelez-nous	-
68	318237200		Housing,top/control		Appelez-nous	-
69	318237300		Shield,control		Appelez-nous	-
77	316247900		Spacer,power Board ,(2)				$ 44.65
98	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer,(2)				$ 60.96
F20	316272220		Controller,electronic ,es500		Appelez-nous	-
F97	316278600		Relay Board				$ 376.90
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
