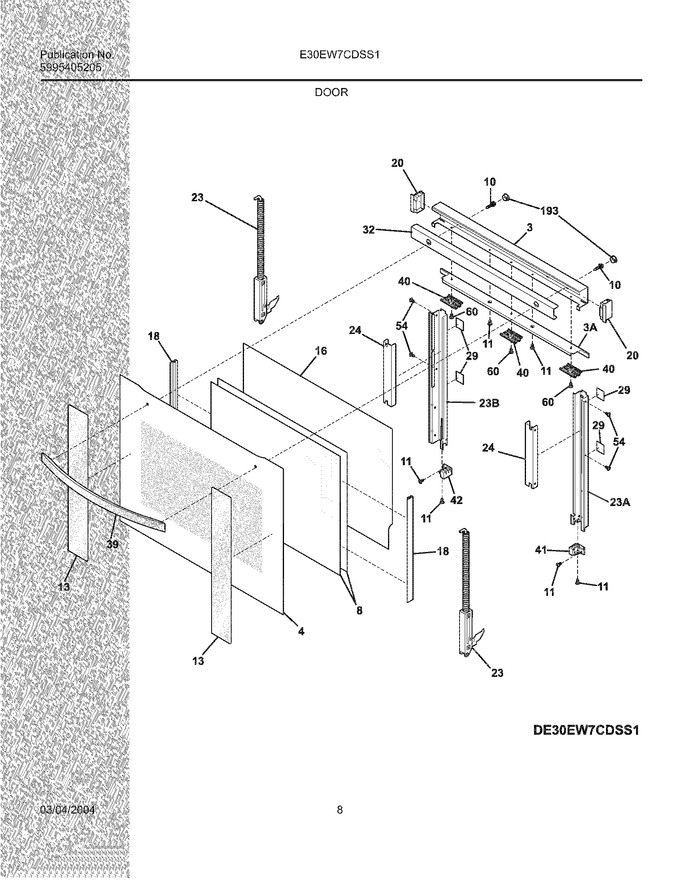

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318238201		Trim,oven Door ,black ,top		Appelez-nous	-
4	318237800		Glass,door Front ,black		Appelez-nous	-
8	318238000		Glass,door ,middle ,(2)				$ 312.47
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
11	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
13	318240400		Panel,exterior Door ,stainless ,side ,(2)		Appelez-nous	-
16	318237900		Glass,oven Interior				$ 392.49
18	318240900		Seal,middle Glass ,(2)				$ 50.66
20	318238600		Cover,door Side ,black ,(2)		Appelez-nous	-
23	318244300		Hinge Assy				$ 224.86
24	318238800		Support,hinge Channel		Appelez-nous	-
29	5304436441		Bumper,base ,(4)				$ 7.25
32	318238701		Deflector,handle		Appelez-nous	-
39	318238902		Handle,oven Door ,stainless   (Replaces: 318238901)		Appelez-nous	-
40	318238401		Bracket,glass Holder ,top ,(3)		Appelez-nous	-
41	318238500		Bracket,glass Holder ,rh Bottom				$ 10.95
42	318238501		Bracket,glass Holder ,lh Bottom				$ 45.94
54	5303308456		Screw,8-18 X 0.531 ,black ,door Frame				$ 10.06
60	5304435879		Screw,glass Holder ,m16 1,5 ,(3)		Appelez-nous	-
193	316210800		Plug,button				$ 10.63
23A	318238102		Retainer,hinge ,rh		Appelez-nous	-
23B	318238103		Retainer,hinge ,lh		Appelez-nous	-
3A	318238300		Holder,glass ,top		Appelez-nous	-
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
NI	5304437044		Screw,10-32 X 1/4 ,black				$ 9.93
