SELECT A DIAGRAM

01 - Cover

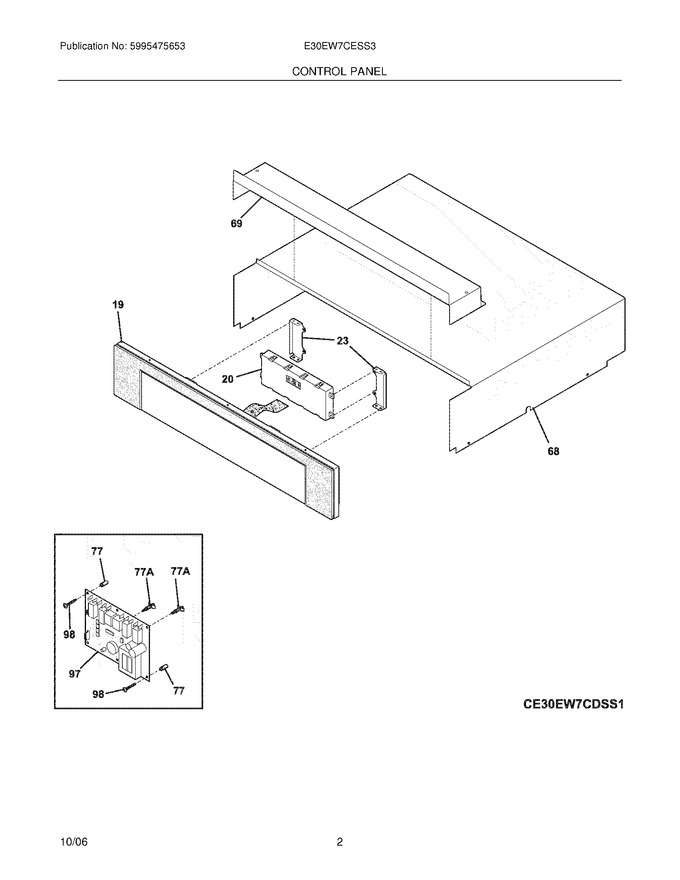

03 - Control Panel


05 - Body


07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	318244807		Control Panel,assembly ,w/stainless Trm		Appelez-nous	-
23	318240801		Bracket,timer Mtg ,(2)		Appelez-nous	-
68	318237200		Housing,top/control		Appelez-nous	-
69	318237300		Shield,control		Appelez-nous	-
77	316247900		Spacer,power Board ,(4)				$ 44.65
98	5303297477		Screw,6-20 X 1 1/4				$ 15.17
77A	316114100		Spacer,(2)				$ 60.96
F20	316272222		Controller,electronic ,es500				$ 472.75
F97	316278600		Relay Board				$ 376.90
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89

    View Diagram in Separate Window       Print Part List
