SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Body

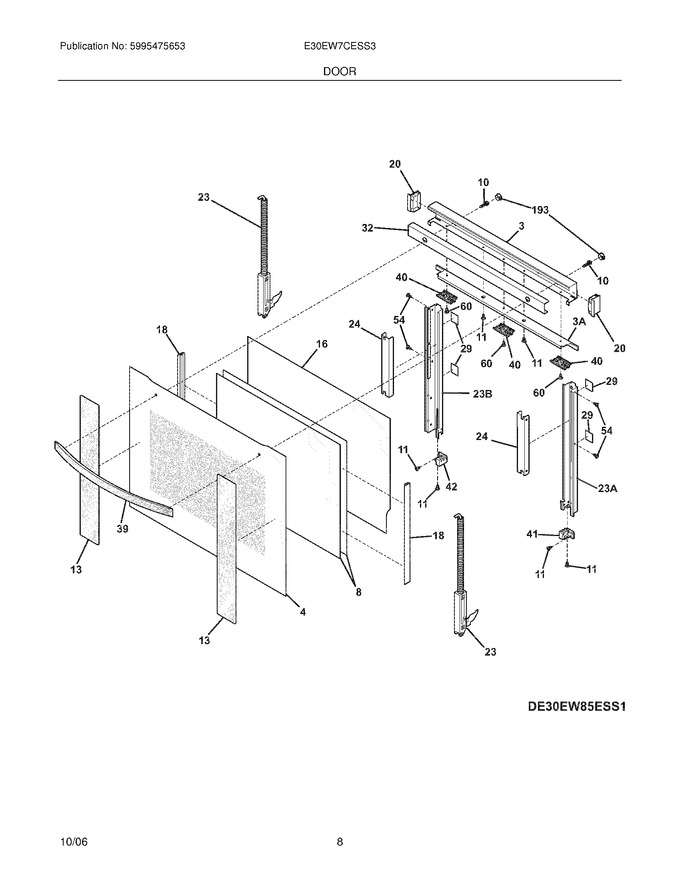

07 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318235900		Door Front Assembly,w/glass ,stainless ,w/frame		Appelez-nous	-
4	318237802		Glass,door Front ,black		Appelez-nous	-
8	318238000		Glass,door ,middle ,(2)				$ 312.47
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 5304436876)				$ 14.18
11	5303320422		Screw,6-20 X 5/16 ,black ,(6)				$ 12.71
13	318240400		Panel,exterior Door ,stainless ,side ,(2)		Appelez-nous	-
16	318237900		Glass,oven Interior				$ 392.49
18	318240900		Seal,middle Glass ,(2)				$ 50.66
20	318238600		Cover,door Side ,black ,(2)		Appelez-nous	-
23	318244302		Hinge Assy,(2)				$ 195.30
24	318238804		Support,hinge Channel		Appelez-nous	-
29	5304436441		Bumper,base ,(4)				$ 7.25
32	318238705		Deflector,handle		Appelez-nous	-
39	318238902		Handle,oven Door ,stainless		Appelez-nous	-
40	318238401		Bracket,glass Holder ,top ,(3)		Appelez-nous	-
41	318238500		Bracket,glass Holder ,rh Bottom				$ 10.95
42	318238501		Bracket,glass Holder ,lh Bottom				$ 45.94
54	5304436875		Screw,8-18 X 1/2,black				$ 14.41
60	5304443263		Screw,6-20 X 3/8 ,black				$ 10.92
193	316210800		Plug,button				$ 10.63
23A	318238112		Retainer,hinge ,rh		Appelez-nous	-
23B	318238113		Retainer,hinge ,lh		Appelez-nous	-
3A	318238301		Holder,glass ,top		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	5304437044		Screw,10-32 X 1/4 ,black ,(4)				$ 9.93

    View Diagram in Separate Window       Print Part List
