SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Upper Oven

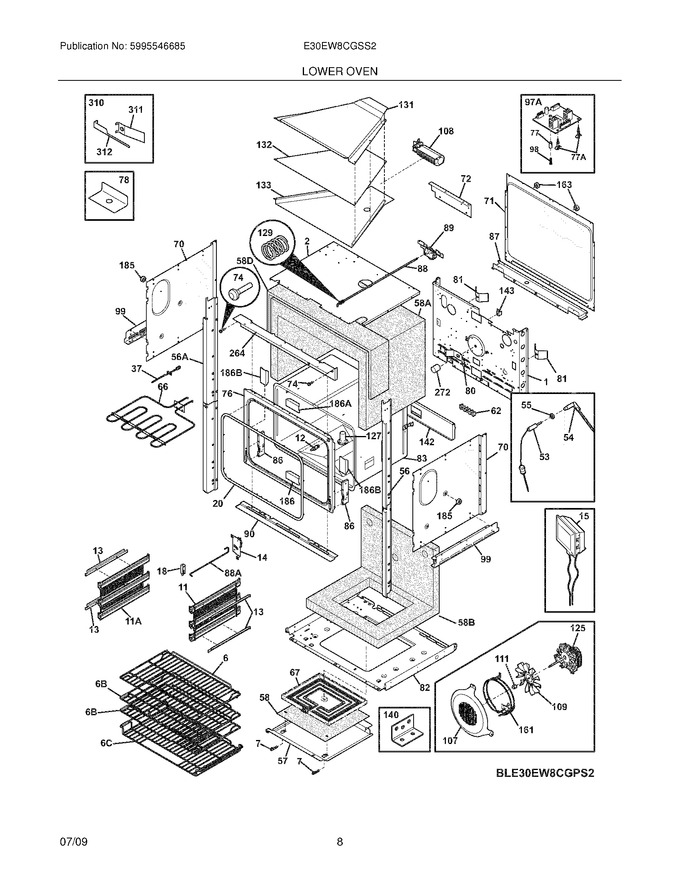

07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7318259220		Back,main		Appelez-nous	-
2	7318376700		Shield,oven Top		Appelez-nous	-
6	7318240103		Shelf,oven ,fixed		Appelez-nous	-
7	7318368300		Pin,locking ,(2)		Appelez-nous	-
11	7318240014		Glide & Support Assy,oven Shelves ,rh		Appelez-nous	-
12	808136601		Switch,oven Light ,door Frame   (Replaces: 7316445501)			Immediately	$ 44.04
13	7318603913		Bracket,ladder Mtg. ,(4)		Appelez-nous	-
15	7318241006		Lamp,oven ,(2) ,halogen		Appelez-nous	-
18	7318562300		Bracket,rod		Appelez-nous	-
20	7318239001		Gasket,oven Door		Appelez-nous	-
55	7316247700		Nut,mounting		Appelez-nous	-
56	7318283122		Trim,side ,black ,rh		Appelez-nous	-
57	7318361610		Panel,service		Appelez-nous	-
58	7318330501		Insulation,service Panel ,12.47 X 14.77		Appelez-nous	-
62	7316056000		Terminal Block		Appelez-nous	-
70	318259114		Shield,insulation ,sides ,(2)				$ 96.81
71	7318376800		Panel,rear Box		Appelez-nous	-
72	7318377100		Cover,main Back		Appelez-nous	-
74	7318283600		Bumper		Appelez-nous	-
76	7318056241		Front,oven		Appelez-nous	-
77	7316247900		Spacer,power Board		Appelez-nous	-
78	7318243601		Bracket,stopping		Appelez-nous	-
80	75303320846		Plate,oven Mtg		Appelez-nous	-
81	7318192400		Spring,oven		Appelez-nous	-
82	318258775		Shield,insulation ,lower				$ 116.87
83	7318386001		Liner,oven Assy		Appelez-nous	-
86	7318241406		Receptacle,hinge ,(2)		Appelez-nous	-
87	318260622		Bracket,cable Mtg.		Appelez-nous	-
88	7318250203		Rod,latch ,w/bushing		Appelez-nous	-
90	7318370403		Bracket,gutter ,black		Appelez-nous	-
98	75303297477		Screw,6-20 X 1 1/4		Appelez-nous	-
99	7318256203		Bracket,side ,bottom ,(2)		Appelez-nous	-
107	7318906601		Cover,fan		Appelez-nous	-
109	318398302		Fan Blade   (Replaces: 7318398300)			Immediately	$ 29.11
111	7318399800		Nut-fan Retainer		Appelez-nous	-
127	7318357003		Adapter Assembly,w/vent Tube ,and Catalyst		Appelez-nous	-
129	75303311164		Spring		Appelez-nous	-
131	7318376911		Channel,air ,upper		Appelez-nous	-
132	7318237603		Divider,air Channel		Appelez-nous	-
133	7318237501		Channel,air ,lower		Appelez-nous	-
140	7318399310		Bracket,holding		Appelez-nous	-
142	7318123910		Deflector		Appelez-nous	-
143	7318172904		Support,wire		Appelez-nous	-
163	7318531703		Spacer,(4)		Appelez-nous	-
185	7318531800		Spacer,oven Shield ,(2)		Appelez-nous	-
186	7318236901		Bracket,oven ,lower		Appelez-nous	-
264	7318278511		Trim,vent		Appelez-nous	-
272	7318249403		Tube,protector		Appelez-nous	-
310	75304435864		Kit,cabinet Mtg ,w/instructions		Appelez-nous	-
311	7318246000		Bracket,cabinet Mtg		Appelez-nous	-
312	318246702		Tool,cabinet Bracket ,rh   (Replaces: 7318246702)				$ 12.13
312	318246703		Tool,cabinet Bracket ,lh   (Replaces: 7318246703)				$ 12.13
11A	7318240015		Glide & Support Assy,oven Shelves ,lh		Appelez-nous	-
56A	7318283123		Trim,side ,black ,lh		Appelez-nous	-
58A	7318386100		Insulation,oven Wrapper		Appelez-nous	-
58B	7318362100		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	7318362124		Insulation,26 X 9.5 X .5		Appelez-nous	-
6B	7318345404		Shelf,oven ,extendable ,(2)		Appelez-nous	-
6C	7318345410		Shelf,oven ,extendable		Appelez-nous	-
77A	7316114100		Spacer		Appelez-nous	-
88A	7318376505		Rod,latch		Appelez-nous	-
F108	318073019		Motor,blower   (Replaces: 7318073019)				$ 518.13
F125	5304467898		Motor,fan   (Replaces: 7318398200)			Immediately	$ 225.67
F125	7318142100		Washer,motor ,convection		Appelez-nous	-
F14	318562200		Sensor Assy,w/switch ,and Bracket   (Replaces: 7318562200)				$ 257.99
F161	7318255507		Element,convection ,1600 W		Appelez-nous	-
F186	7318237101		Bracket,oven ,side ,(2)		Appelez-nous	-
F186	7318237001		Bracket,oven ,upper		Appelez-nous	-
F311	75304438005		Screw,6 X 1 ,black		Appelez-nous	-
F37	316217002		Probe,oven Temp   (Replaces: 7316217002)			Immediately	$ 61.23
F53	5304504202		Probe,meat Temp   (Replaces: 7318601302)			Immediately	$ 106.19
F54	318601206		Receptacle,probe   (Replaces: 7318601206)			Immediately	$ 171.52
F66	318255806		Element,broil ,4000w   (Replaces: 7318255806)				$ 282.09
F67	318601604		Element,hidden Bake ,upper Oven   (Replaces: 7318601601)			Immediately	$ 260.38
F89	318095965		Motor,latch Assy ,w/brkt & Switch   (Replaces: 7318095965)				$ 152.64
F97A	316519200		Board,variable Speed   (Replaces: 7316519200)			Immediately	$ 256.24
FNI	7318370377		Wiring Harness,door Switch		Appelez-nous	-
FNI	7318394443		Box & Wires Assy		Appelez-nous	-
FNI	7318532109		Wiring Harness,main ,lower Oven		Appelez-nous	-
FNI	7318549301		Harness,wiring ,communication		Appelez-nous	-
FNI	7318231870		Wiring Harness,bake Element		Appelez-nous	-
NI	7318167300		Clip,rod		Appelez-nous	-
NI	75304456367		Rivet,ladder Bracket ,(8)		Appelez-nous	-
NI	75304461333		Screw,10-32 X 17/32		Appelez-nous	-
NI	75303316982		Foam Seal,(2)		Appelez-nous	-
NI	75304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	75303323144		Nut,10-32		Appelez-nous	-
NI	75303211311		Screw,8 X 0.500		Appelez-nous	-
NI	75303311306		Screw,8-18 X 0.375 ,(6)		Appelez-nous	-
NI	75303323129		Screw,8 X 0.750		Appelez-nous	-
NI	75303323277		Screw,8-18 X 13/32		Appelez-nous	-
NI	75303324184		Screw,8-18 X 5/16 ,black ,(4)		Appelez-nous	-
NI	7318373001		Bracket,receptacle ,temp Probe		Appelez-nous	-
NI	75303323139		Screw,10-24 X 0.906		Appelez-nous	-
NI	7318341201		Jumper,electronic ,rack Sensor		Appelez-nous	-
NI	75304435874		Plate,covering ,probe		Appelez-nous	-
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
NI	75303323136		Screw Ground		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
