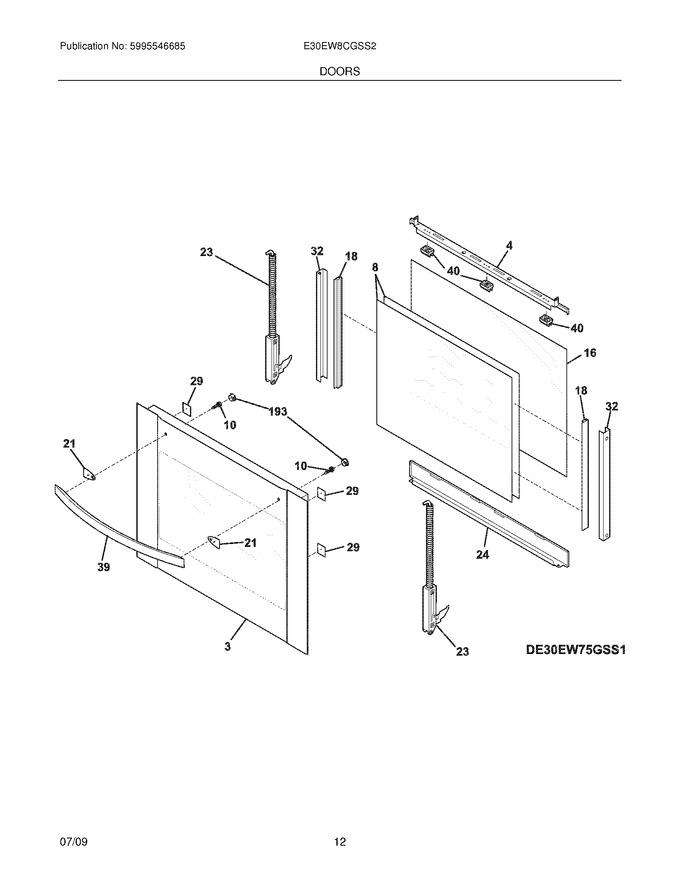

09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7318235902		Door Front Assembly,w/glass ,stainless ,w/frame		Appelez-nous	-
4	7318238314		Holder,glass ,top		Appelez-nous	-
8	7318238020		Glass,door ,middle ,(2)		Appelez-nous	-
10	08002868		Screw & Washer,handle Mtg. ,10-24 X 1/2   (Replaces: 75304436876)				$ 14.18
16	7318237920		Glass,oven Interior		Appelez-nous	-
18	7318377501		Seal,middle Glass ,(2)		Appelez-nous	-
21	7318369410		Spacer,handle		Appelez-nous	-
23	7318244304		Hinge Assy,(2)		Appelez-nous	-
24	7318390401		Trim,door ,black ,lower		Appelez-nous	-
29	75304436441		Bumper,base ,(4)		Appelez-nous	-
32	7318382601		Deflector,middle Glass ,(2)		Appelez-nous	-
39	7318238904		Handle,oven Door ,stainless		Appelez-nous	-
40	7318377400		Bracket,glass Holder		Appelez-nous	-
193	316210800		Plug,button   (Replaces: 7316210800)				$ 10.63
NI	75304443263		Screw,6-20 X 3/8 ,black		Appelez-nous	-
NI	7318163602		Cleaner,stainless Steel		Appelez-nous	-
NI	75304436875		Screw,8-18 X 1/2 ,black		Appelez-nous	-
NI	75304437044		Screw,10-32 X 1/4 ,black ,(4)		Appelez-nous	-
