View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

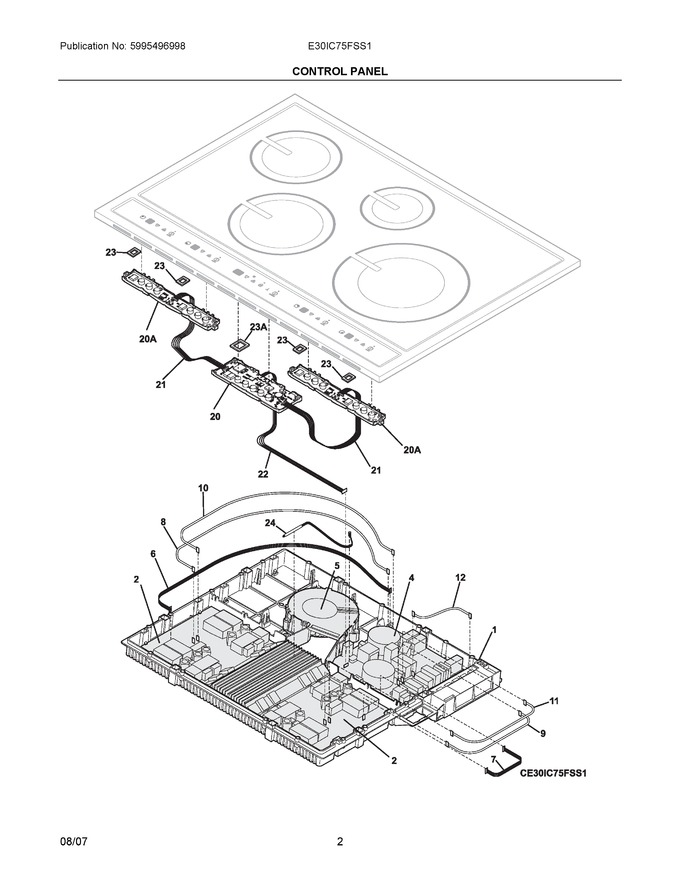

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318329601 | Housing Assembly, Induction, W/electronics (Replaces: 318329600) |
|
$ 1,041.24 | |||||
| 2 | 318347100 | Generator, Circuit Board, (2) |
|
$ 512.24 | |||||
| 4 | 5304454971 | Filter, Circuit Board (Replaces: 318347000) |
|
$ 788.28 | |||||
| 5 | 318346900 | Cooling Fan Assembly |
|
- | |||||
| 6 | 318348001 | Communication Cable, Generator, 18", To Filter |
|
- | |||||
| 7 | 318348000 | Communication Cable, Generator, 6", To Filter |
|
- | |||||
| 8 | 318052581 | Power Cable Set, Generator, 18", Black, To Filter |
|
- | |||||
| 9 | 318052580 | Power Cable Set, Generator, 6", Blue, To Filter |
|
- | |||||
| 10 | 318052582 | Power Cable Set, Generator, 18", Blue, To Filter |
|
- | |||||
| 11 | 318052579 | Power Cable Set, Generator, 6", Black, To Filter |
|
- | |||||
| 12 | 318052578 | Groung Wire |
|
- | |||||
| 20 | 318330811 | Touch Control, Electronic, Main |
|
- | |||||
| 21 | 318083044 | Interface Cable, Zone, Main, (2) |
|
- | |||||
| 22 | 318083045 | Communication Cable, Control, Main, To Filter |
|
- | |||||
| 23 | 318368900 | Frame, Display, (4) |
|
- | |||||
| 24 | 318349900 | Thermistor |
|
- | |||||
| 20A | 318330711 | Touch Control, Cook Zone, (2), Electronic |
|
- | |||||
| 23A | 318368910 | Frame, Display |
|
- | |||||
| NI | 5304457268 | Washer, Flat, Nylon, (4) |
|
- | |||||
| NI | 5304457269 | Palnut, #8-32, (6) |
|
- | |||||
| NI | 5304457271 | Tape, Foam, 1/4"x1"x1", (6) |
|
- |
