SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

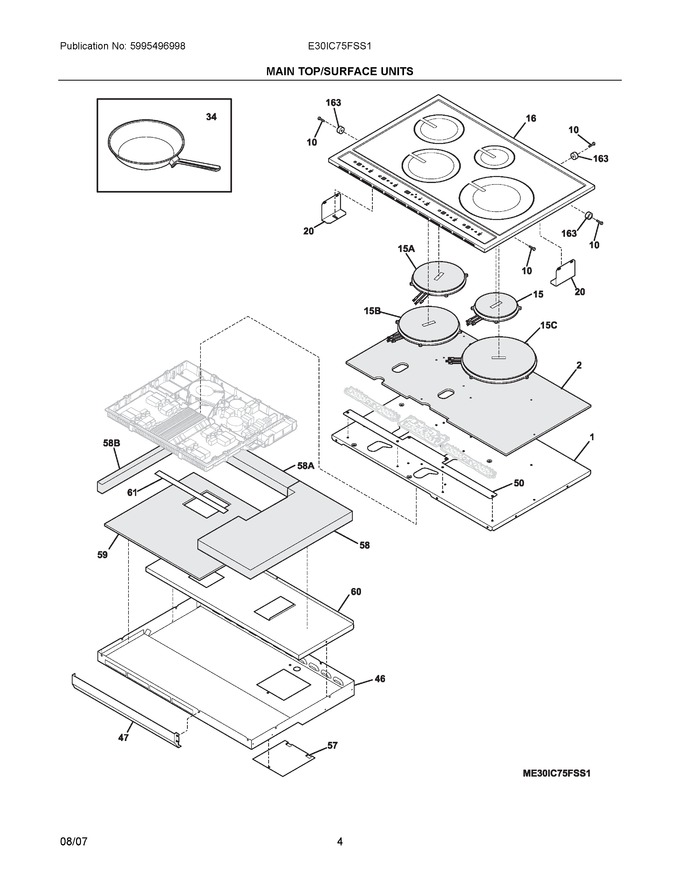

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329004		Panel, Carrier		Appelez-nous	-
2	318344500		Insulation, Elements		Appelez-nous	-
10	5304450850		Screw, 7-19 X 1/2", (11), Housing Ring		Appelez-nous	-
15	318329200		Element, Induction Coil, 145mm, Right Rear		Appelez-nous	-
16	318282519		Main Top Assy, Glass/steel, Black/stainless				$ 721.72
20	318121906		Bracket, Retainer		Appelez-nous	-
34	318526700		Pan, Skillet, Induction				$ 439.30
46	318328917		Box, Burner		Appelez-nous	-
47	318345113		Deflector, Air		Appelez-nous	-
50	318356803		Panel, Spacer		Appelez-nous	-
57	318330911		Panel, Access		Appelez-nous	-
58	318346000		Insulation, Housing, Rh		Appelez-nous	-
59	318346201		Insualtion, Housing, Lower		Appelez-nous	-
60	318346101		Deflector, Air		Appelez-nous	-
61	5304424462		Foam Tape, 1/2" X 14			Immediately	$ 69.77
163	318531702		Spacer, (6)   (Replaces: 318014110)				$ 9.93
15A	318329201		Element, Induction Coil, 180mm, Left Rear		Appelez-nous	-
15B	318329202		Element, Induction Coil, 210mm, Left Front		Appelez-nous	-
15C	318329203		Element, Induction Coil, 260mm, Right Front		Appelez-nous	-
58A	318346002		Insulation, Housing, Rear		Appelez-nous	-
58B	318346001		Insulation, Housing, Lh		Appelez-nous	-
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NI	318078552		Box & Wires Assy		Appelez-nous	-
NI	318341500		Clamp, Power Cord		Appelez-nous	-
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
