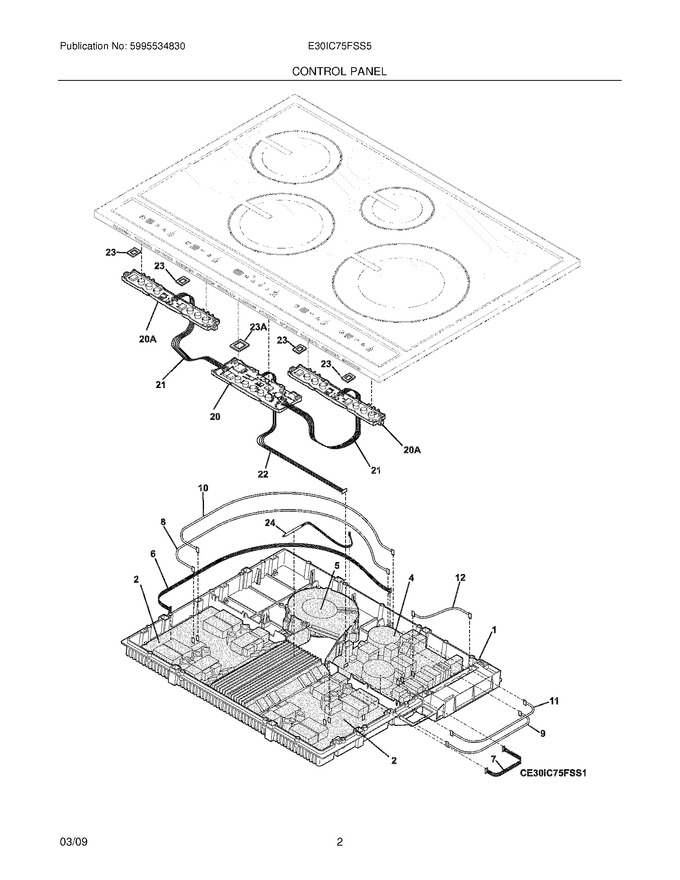

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329601		Housing Assembly,induction ,w/electronics   (Replaces: 318329600)				$ 1,041.24
2	318347100		Generator,circuit Board ,(2) ,2 Zone				$ 512.24
4	5304454971		Filter,circuit Board ,large   (Replaces: 318347000)				$ 788.28
5	318346900		Cooling Fan Assembly,large		Appelez-nous	-
6	318348001		Communication Cable,generator ,18`` ,to Filter,x10/x12		Appelez-nous	-
7	318348000		Communication Cable,generator ,6`` ,to Filter,x10/x13		Appelez-nous	-
8	318052581		Power Cable Set,filter ,18`` ,black ,to Generator,x7/x1		Appelez-nous	-
9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
10	318052582		Power Cable Set,filter ,18`` ,blue ,to Generator,x8/x2		Appelez-nous	-
11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
12	318052596		Groung Wire,x54/6				$ 16.28
22	318532102		Communication Cable,center Control ,to Filter				$ 47.88
23	318368900		Frame,display ,single ,(5)		Appelez-nous	-
24	318349900		Thermal Cut-out,short		Appelez-nous	-
23A	318368910		Frame,display ,double		Appelez-nous	-
F20	318330814		Touch Control,electronic ,main		Appelez-nous	-
F20A	318330712		Touch Control,cook Zone ,(2) ,electronic				$ 370.17
F21	318402404		Interface Cable,side Control ,to Center		Appelez-nous	-
NI	5304457268		Washer,flat ,nylon ,(4)		Appelez-nous	-
NI	5304457269		Palnut,no.8-32 ,(6)		Appelez-nous	-
NI	5304457271		Tape,foam ,1/4``x1``x1`` ,(6)		Appelez-nous	-
