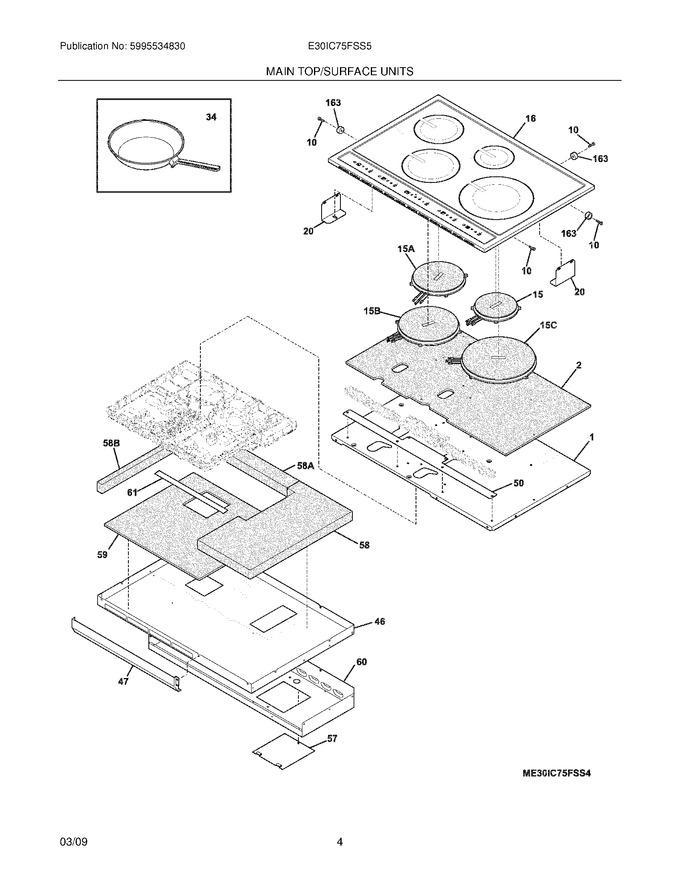

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318329007		Panel,carrier		Appelez-nous	-
2	318344500		Insulation,elements		Appelez-nous	-
10	5304450850		Screw,7-19 X 1/2``		Appelez-nous	-
16	318282519		Main Top Assy,glass/steel ,black/stainless				$ 721.72
20	318121915		Bracket,retainer ,(2)				$ 18.64
34	318526700		Pan,skilet ,induction				$ 439.30
35	318341500		Clamp,power Cord		Appelez-nous	-
46	318328918		Box,burner		Appelez-nous	-
47	318345115		Deflector,air		Appelez-nous	-
50	318356803		Panel,spacer		Appelez-nous	-
57	318330912		Panel,access		Appelez-nous	-
58	318346000		Insulation,housing ,rh		Appelez-nous	-
59	318346201		Insualtion,housing ,lower		Appelez-nous	-
60	318329300		Box,plenum ,lower		Appelez-nous	-
61	5304424462		Foam Tape,1/2`` X 14``			Immediately	$ 69.77
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
58A	318346002		Insulation,housing ,rear		Appelez-nous	-
58B	318346001		Insulation,housing ,lh		Appelez-nous	-
F15	318329200		Element,induction Coil ,145mm ,rear		Appelez-nous	-
F15A	318329201		Element,induction Coil ,180mm ,lh Rear		Appelez-nous	-
F15B	318329202		Element,induction Coil ,210mm ,lh Front		Appelez-nous	-
F15C	318329203		Element,induction Coil ,260mm ,rh Front		Appelez-nous	-
FNI	5304470730		Box & Wires Assy		Appelez-nous	-
FNI	318078576		Wiring,power Supply ,w/flex Housing		Appelez-nous	-
NI	316459400		Pad,cleaning		Appelez-nous	-
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	5303307980		Screw,8-32 X 0.437 ,(8)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
