SELECT A DIAGRAM

01 - Cover

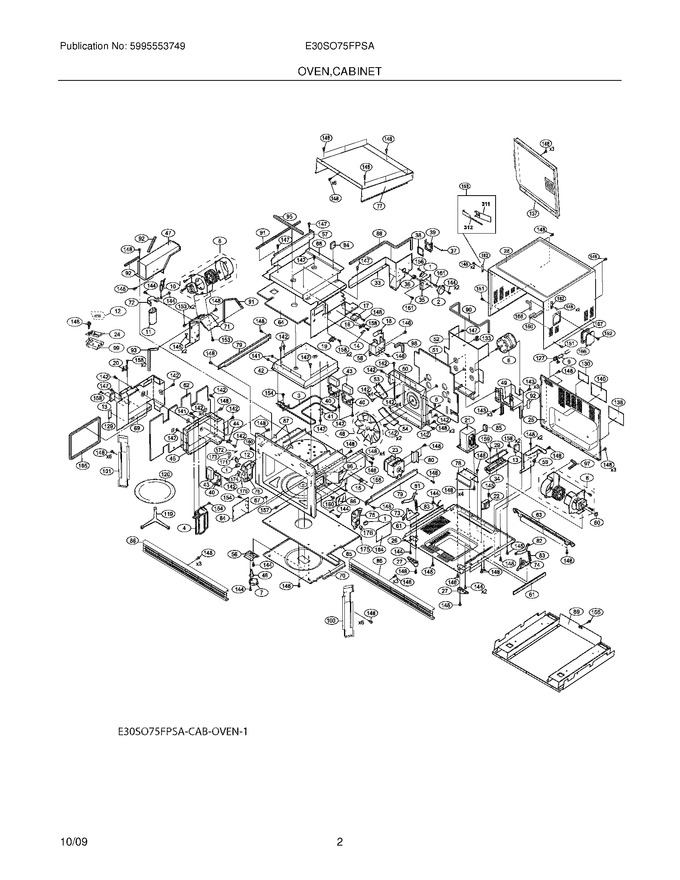

03 - Oven Cabinet


05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
18	5304451402		Lamp,oven Light				$ 185.17
25	5304451408		Panel,cabinet Back		Appelez-nous	-
26	5304451409		Base,cabinet Bottom		Appelez-nous	-
27	5304451410		Foot,cabinet Support		Appelez-nous	-
28	5304451411		Cabinet,outer Casing		Appelez-nous	-
33	5304451437		Duct,damper		Appelez-nous	-
34	5304451438		Angle,power Board Mt.		Appelez-nous	-
35	5304451439		Angle,motor Mount		Appelez-nous	-
36	5304451440		Cam,damper				$ 27.02
37	5304451441		Shaft,damper		Appelez-nous	-
38	5304451442		Cushion,damper		Appelez-nous	-
39	5304451443		Damper		Appelez-nous	-
40	5304451444		Angle,catalyst Mount		Appelez-nous	-
41	5304451445		Angle,heater Mount ,a		Appelez-nous	-
42	5304451446		Duct,heater ,upper		Appelez-nous	-
43	5304451447		Catalyst,air/odor Filter		Appelez-nous	-
44	5304451448		Angle,heater Mount ,b		Appelez-nous	-
45	5304451449		Duct,heater ,left		Appelez-nous	-
46	5304480644		Coupler,turntable/motor   (Replaces: 5304451450)				$ 138.80
47	5304451451		Duct,exhaust		Appelez-nous	-
49	5304451453		Angle,fan Motor Mount		Appelez-nous	-
50	5304451454		Duct,convection Fan		Appelez-nous	-
51	5304451455		Insulation,thermal ,back Panel		Appelez-nous	-
52	5304451456		Cover,thermal ,back Panel		Appelez-nous	-
53	5304451457		Plate,divider ,a		Appelez-nous	-
54	5304451458		Plate,divider ,b		Appelez-nous	-
56	5304451459		Bracket,turntable Mount		Appelez-nous	-
57	5304451460		Separator,left		Appelez-nous	-
58	5304451461		Angle,lamp Mount		Appelez-nous	-
59	5304451462		Separator,magnetron		Appelez-nous	-
60	5304451463		Cushion,blower Motor ,right		Appelez-nous	-
61	5304451464		Cushion,bottom Plate		Appelez-nous	-
62	5304451465		Insulation,thermal ,heater Duct		Appelez-nous	-
63	5304451466		Separator,rear		Appelez-nous	-
64	5304451467		Insulation,thermal ,upper		Appelez-nous	-
65	5304451468		Insulation,thermal ,bottom		Appelez-nous	-
66	5304451469		Lens,lamp Glass		Appelez-nous	-
67	5304451470		Packing,silicon				$ 52.05
68	5304451471		Cover,thermal ,upper		Appelez-nous	-
69	5304451472		Cover,thermal ,left		Appelez-nous	-
70	5304451473		Cover,thermal ,bottom		Appelez-nous	-
71	5304451474		Angle,fan Motor Mount		Appelez-nous	-
72	5304451475		Holder,capacitor Clamp		Appelez-nous	-
73	5304451476		Hinge,oven Door ,left				$ 243.86
74	5304451477		Hinge,oven Door ,right				$ 269.01
75	5304466752		Latch Hook,right				$ 65.57
76	5304466753		Latch Hook,left				$ 56.49
77	5304451480		Duct,top				$ 91.53
78	5304451481		Angle,transformer Mt.		Appelez-nous	-
79	5304451482		Support,chassis ,(2)		Appelez-nous	-
80	5304451483		Guide,magnetron		Appelez-nous	-
81	5304451484		Cam,door ,left		Appelez-nous	-
82	5304451485		Cam,door ,right				$ 12.50
83	5304451486		Spring,door				$ 45.20
84	5304451487		Cover,waveguide				$ 75.46
85	5304451488		Cushion,pwr Transformer		Appelez-nous	-
86	5304451489		Grille,exhaust Vent ,(2)		Appelez-nous	-
87	5304451490		Cushion,front Panel ,rear		Appelez-nous	-
88	5304451491		Cushion,damper Duct		Appelez-nous	-
89	5304458934		Duct,bottom		Appelez-nous	-
90	5304451493		Cushion,back Cover		Appelez-nous	-
91	5304451494		Cushion,angle/separator		Appelez-nous	-
92	5304451495		Cover,edge ,(3)		Appelez-nous	-
93	5304451496		Cushion,motor Mt. Angle		Appelez-nous	-
94	5304451497		Cushion,upper Cover ,pad		Appelez-nous	-
95	5304451498		Cushion,upper Cover ,strip		Appelez-nous	-
96	5304451499		Cushion,cavity ,right Side		Appelez-nous	-
97	5304451500		Cushion,magnetron		Appelez-nous	-
98	5304451501		Cushion,lamp Mt. Angle		Appelez-nous	-
99	5304451502		Angle,noise Unit Mt.		Appelez-nous	-
100	5304451503		Trim,right Side		Appelez-nous	-
101	5304451504		Trim,left Side		Appelez-nous	-
119	5304451522		Support,turntable				$ 315.21
120	5304451523		Tray,turntable				$ 226.24
127	5304451527		Bushing,power Cord		Appelez-nous	-
129	5304440334		Label,caution-monitor		Appelez-nous	-
130	5304440333		Label,caution-dhhs		Appelez-nous	-
133	5304451531		Clamp,power Cord ,back Cover		Appelez-nous	-
137	5304458940		Duct,back				$ 281.50
138	5304451533		Label,nhw Caution		Appelez-nous	-
140	5304451535		Label,height Caution		Appelez-nous	-
141	5304451547		Nut,element ,4 Mm X 3.2 Mm ,(4)		Appelez-nous	-
142	5304451548		Screw,4 Mm X 8 Mm		Appelez-nous	-
143	5304451549		Screw,4 Mm X 6 Mm		Appelez-nous	-
144	5304451550		Screw,4 Mm X 8 Mm		Appelez-nous	-
145	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
146	5304451551		Screw,4 Mm X 8 Mm		Appelez-nous	-
147	5304502863		Screw,4 Mm X 8 Mm ,white   (Replaces: 5304451552)				$ 10.85
148	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
149	5304440873		Screw,torx ,tamper Proof				$ 11.34
150	5304451569		Cushion,side Louver		Appelez-nous	-
151	5304451554		Screw,special		Appelez-nous	-
152	5304451570		Screw		Appelez-nous	-
153	5304451555		Screw,4 Mm X 8 Mm		Appelez-nous	-
154	5304451556		Screw,special				$ 13.05
155	5304451557		Screw,4 Mm X 12 Mm		Appelez-nous	-
156	5304451558		Screw,special		Appelez-nous	-
157	5304451517		Screw,4 Mm X 8 Mm				$ 17.35
158	5304451560		Screw,3 Mm X 10 Mm		Appelez-nous	-
159	5303319641		Screw				$ 12.76
160	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
161	5304451561		Screw,4mm X 8mm   (Replaces: 5303319634)				$ 16.63
162	5304451562		Bracket,oven Retainer ,anti-tip		Appelez-nous	-
163	5304451563		Anti-tip Kit,w/brackets ,tools,screws		Appelez-nous	-
164	5304451564		Wiring Diagram,schematic ,label		Appelez-nous	-
165	5304451565		Cushion,thermal Cover ,left		Appelez-nous	-
166	5304451566		Cover,lamp		Appelez-nous	-
167	5304451567		Cushion,lamp Cover		Appelez-nous	-
168	5304451568		Cushion		Appelez-nous	-
171	5304472816		Spring,torsion				$ 13.72
172	5304472814		Spring,top				$ 6.34
173	5304472815		Lever,switch ,left ,a				$ 38.66
174	5304472820		Lever,switch ,left ,b				$ 31.53
175	5304472819		Spring,bottom				$ 15.61
176	5304472818		Lever,switch ,right ,b				$ 36.23
311	318246000		Bracket,cabinet ,anti-tip		Appelez-nous	-
312	318246703		Tool,oven Release ,lh Key				$ 12.13
312	318246702		Tool,oven Release ,rh Key				$ 12.13
F1	5304493153		Switch,interlock ,door Sensor   (Replaces: 5304440026)			Immediately	$ 83.38
F10	5304451395		Rectifier,high Voltage				$ 209.18
F11	5304487566		Capacitor,high Voltage   (Replaces: 5304451396)			Immediately	$ 122.62
F12	5304451397		Switch/fuse Assy,monitor				$ 152.72
F13	5304451398		Relay,solid State		Appelez-nous	-
F14	5304451399		Fuse,f10a				$ 110.57
F15	5304440780		Fuse,cavity Temp ,20 Amp ,250 V				$ 85.76
F16	5304451400		Holder,fuse F10a		Appelez-nous	-
F17	5304451401		Capacitor,fan Motor		Appelez-nous	-
F19	5304451403		Thermal Cutout,top Heater				$ 146.71
F2	5304451387		Motor,damper		Appelez-nous	-
F20	5304451404		Thermal Cutout,side Heater				$ 79.36
F21	5304451405		Transformer,power				$ 740.25
F22	5304451406		Transformer,low Voltage				$ 340.50
F23	5304458933		Magnetron				$ 273.27
F24	5304451407		Filter,noise				$ 289.63
F29	5304451412		Power Unit,pwb				$ 256.76
F3	5304451388		Element,heating ,top		Appelez-nous	-
F311	5304438005		· Screw,6 X 1 ,black				$ 9.93
F311	134178901		Screw,8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
F4	5304451389		Element,heating ,side		Appelez-nous	-
F48	5304451452		Blade,convection Fan				$ 297.96
F5	5304451390		Thermistor		Appelez-nous	-
F6	5304459004		Motor,convection Fan		Appelez-nous	-
F7	5304451392		Motor,turntable				$ 137.32
F8	5304451393		Motor,exhaust Fan				$ 291.18
F9	5304451394		Power Cord,electric		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
