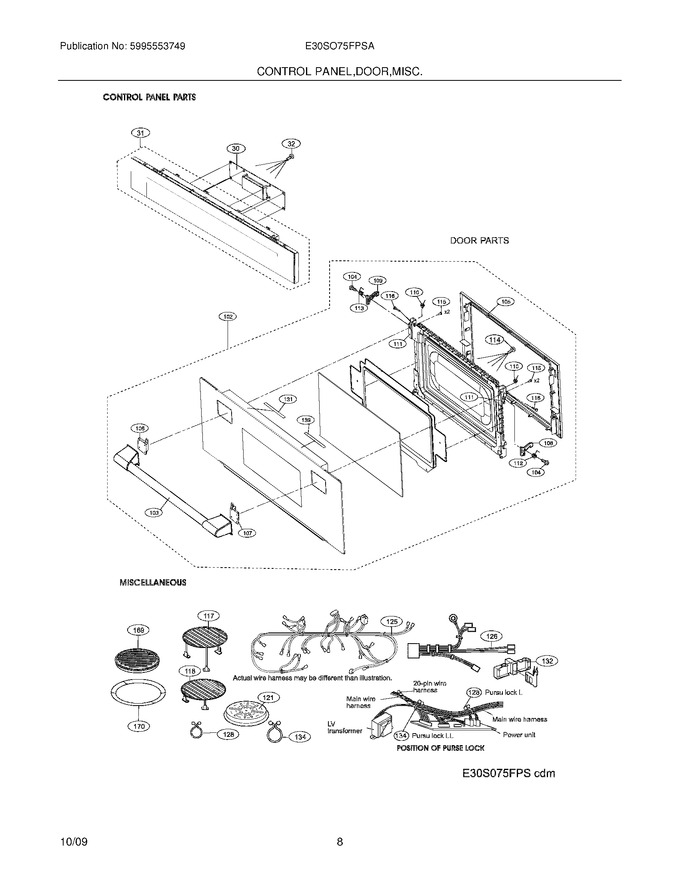

05 - Control Panel/door/misc


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	5304451415		Screw		Appelez-nous	-
102	5304458935		Door,assembly				$ 727.34
103	5304458936		Handle,door		Appelez-nous	-
104	5304451507		Screw				$ 8.63
105	5304451508		Frame,inner Door ,choke Cover				$ 214.83
106	5304458937		Adapter,door Handle ,left Side		Appelez-nous	-
107	5304458938		Adapter,door Handle ,right Side		Appelez-nous	-
108	5304451511		Latch Head,right Side				$ 73.37
109	5304451512		Latch Head,left Side				$ 69.93
110	5304451513		Spring,handle		Appelez-nous	-
111	5304451514		Lever,handle				$ 111.28
112	5304451515		Spring,latch ,right Side				$ 21.40
113	5304451516		Spring,latch ,left Side				$ 18.41
114	5304451517		Screw,4 Mm X 8 Mm				$ 17.35
115	5304458939		Screw,4 Mm X 20 Mm		Appelez-nous	-
116	5304451519		Pin,handle				$ 54.15
117	5304451520		Rack,high		Appelez-nous	-
118	5304451521		Rack,low				$ 288.99
121	5304451524		Plate,splash Guard				$ 186.74
128	5304451528		Clip,wire Harness ,plastic ,l		Appelez-nous	-
131	5304440346		Label,user Caution				$ 34.73
132	5304451530		Insulator,terminal		Appelez-nous	-
134	5304451529		Clip,wire Harness ,plastic ,ll		Appelez-nous	-
139	5304451534		Label,user Caution ,french				$ 3.55
169	5304465264		Pan,pizza				$ 105.25
170	5304461261		Rack,bacon				$ 180.03
F125	5304451525		Wiring Harness,main		Appelez-nous	-
F126	5304451526		Wiring Harness,thermistor		Appelez-nous	-
F30	5304451413		Control Board,cpu				$ 707.18
F31	5304456394		Touch Control		Appelez-nous	-
