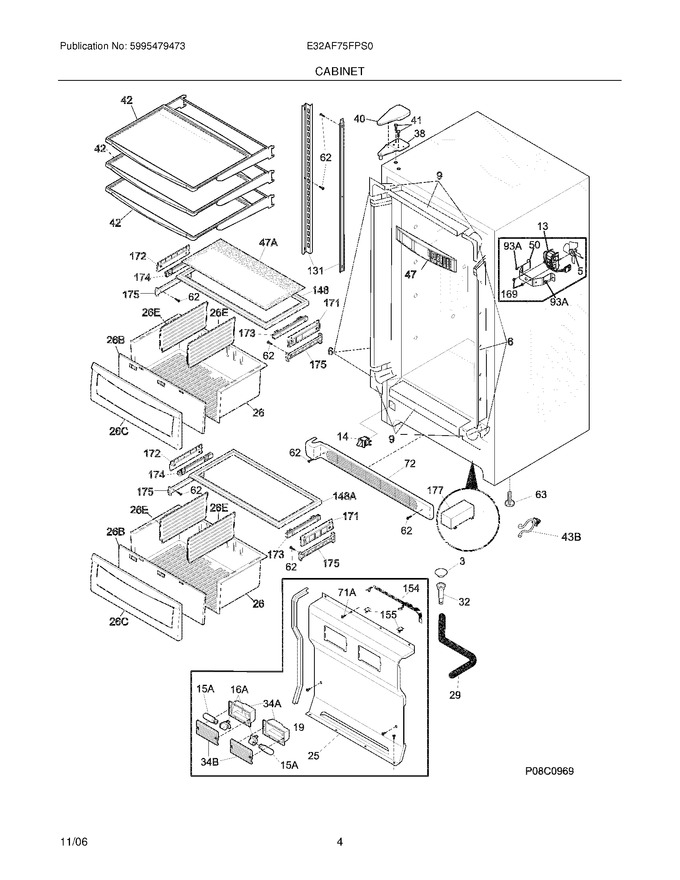

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604200		Breaker Kit W/corners				$ 227.12
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216922800		Switch,light/lamp ,ramp				$ 12.22
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099204		Cover-evaporator		Appelez-nous	-
26	A11791811		Case-crisper,shallow   (Replaces: 297091600)				$ 211.52
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
38	216939100		Hinge-upper				$ 59.54
40	216809002		Cover-hinge		Appelez-nous	-
41	216936800		Screw-hinge,12-24x.700 Hwh		Appelez-nous	-
42	297108901		Shelf-sliding		Appelez-nous	-
47	297133000		Baffle-plate		Appelez-nous	-
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 22.75
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
131	218233301		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
148	297092500		Frame-crisper Cover,upper				$ 195.15
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,(2)   (Replaces: 5303313703)				$ 3.79
169	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
171	297092700		Bracket,crisper Cover ,rh				$ 55.36
172	297092701		Bracket,crisper Cover ,lh				$ 56.88
173	5304515502		Slide,crisper ,rh   (Replaces: 297107600)				$ 77.36
174	5304515501		Slide,crisper ,lh   (Replaces: 297107601)				$ 78.08
175	297099500		Support-crisper			Immediately	$ 47.03
177	297116000		Electronics,theater Lgt				$ 565.68
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
26B	297091801		Panel,crisper Window				$ 629.80
26C	297091704		Panel,crisper Front				$ 78.02
26E	297099400		Divider-crisper,shallow				$ 67.83
34A	297053101		Shield-light,rh		Appelez-nous	-
34A	297053100		Shield-light,lh		Appelez-nous	-
34B	297053200		Lens,light				$ 43.95
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
47A	297102700		Insert-pan Cover,glass				$ 38.38
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 55.32
F148	297092501		Frame-crisper Cover,shallow ,lower				$ 167.41
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
NI	216910405		Energy Guide		Appelez-nous	-
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	297114600		Instructions,installation ,icemaker		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
