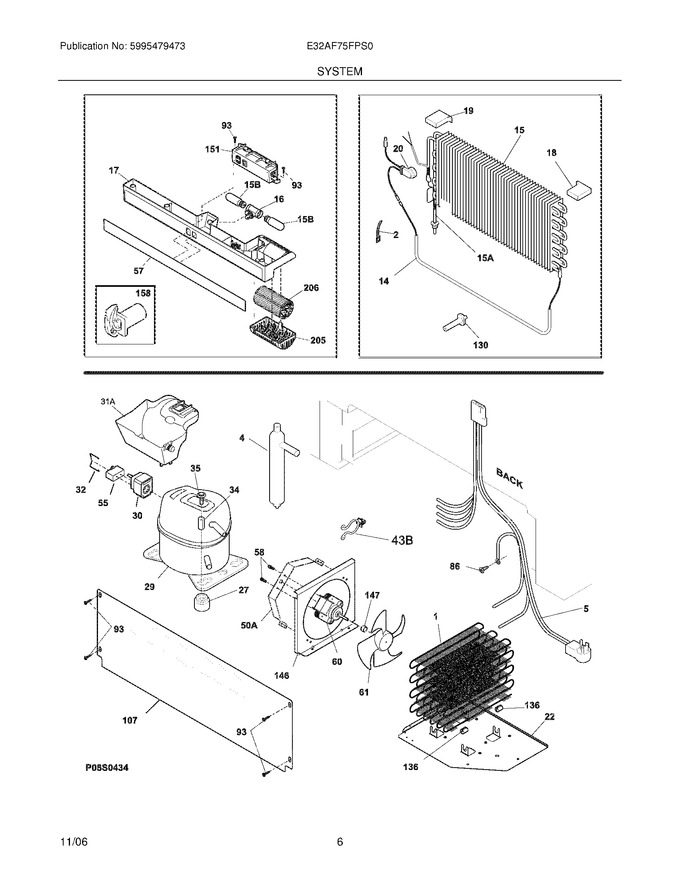

07 - System


09 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost			Immediately	$ 116.44
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
17	297110300		Box-control,front		Appelez-nous	-
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
22	216970300		Base,condenser				$ 38.96
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
32	241544101		Clamp,elec Cont Mtg ,compressor ,bale Wire		Appelez-nous	-
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
55	297286803		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909915)			Immediately	$ 28.77
57	297110801		Overlay-control Box				$ 98.05
58	240555002		Screw,hex Washer Head ,8-32 X 0.375   (Replaces: 218897002)			Immediately	$ 13.46
60	5303918774		Motor,condensor Fan   (Replaces: 240525402)			Immediately	$ 186.30
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
107	297001900		Shield,compressor ,compartment		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
146	216970200		Shroud-fan Orfice				$ 104.90
147	240560001		Ring-compression		Appelez-nous	-
158	297111000		Standoff,control Box ,(3)		Appelez-nous	-
205	297108500		Cap-air Filter		Appelez-nous	-
206	241504902		Filter-air		Appelez-nous	-
15B	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
31A	216994102		Pan-drain   (Replaces: 216994100)				$ 30.53
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
50A	240524001		Bracket,fan Motor Mount				$ 185.70
F1	5300083897		Condenser				$ 538.37
F146	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297112403		Electronic Control,assy		Appelez-nous	-
F15A	216783200		Heat Exchanger,suct/cap Tube			Immediately	$ 91.09
F29	5304475098		Compressor,kit W/grommets ,& Welded Clip,w/o Electricals   (Replaces: 297003000)				$ 496.13
F30	297237702		Starter-tsd   (Replaces: 241527803)				$ 105.86
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297122600		Harness-main		Appelez-nous	-
F61	240524102		Fan Blade,galv Steel ,condenser Fan   (Replaces: 240524101)			Immediately	$ 39.43
NI	216502500		Sleeve,suction Line				$ 10.85
NI	297014500		Plug-suction Line		Appelez-nous	-
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297108000		Jumper-wire,electronic W/lt		Appelez-nous	-
NI	297110400		Thermistor			Immediately	$ 72.68
NI	131823400		Screw,8-18 X 2.00				$ 1.42
NI	297112600		Sleeve-control Box,(3)		Appelez-nous	-
