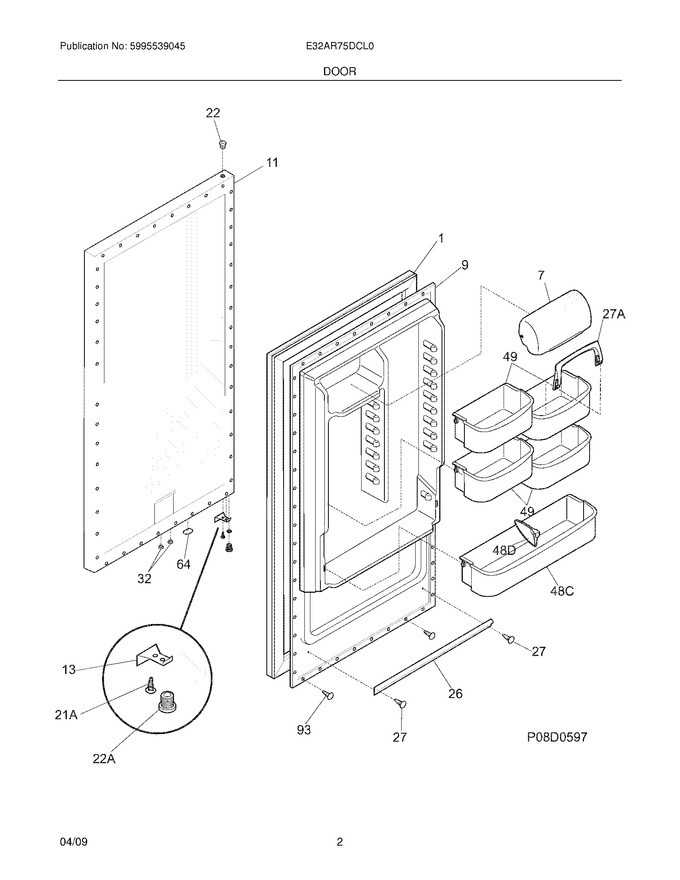

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7216522309 | Gasket-door,white |
|
- | |||||
| 7 | 7240338313 | Door,dairy ,clear |
|
- | |||||
| 9 | 7216953601 | Panel-inner Door,refr |
|
- | |||||
| 11 | 7297297201 | Panel-outer Door |
|
- | |||||
| 13 | 7297257002 | Door Stop,lh |
|
- | |||||
| 22 | 7216970800 | Bearing,hinge W/o`ring ,top |
|
- | |||||
| 26 | 7216524200 | Gasket,secondary |
|
- | |||||
| 27 | 75303212828 | Clip,panel Mtg |
|
- | |||||
| 32 | 75309950074 | Valve,breather |
|
- | |||||
| 49 | 216959802 | Bin-door,2-liter (Replaces: 7297107801) |
|
Immediately | $ 83.49 | ||||
| 64 | 7216403700 | Plug-button,hole Filler ,door Base |
|
- | |||||
| 93 | 216858001 | Screw,ph Truss Head ,8-18ab X 0.500 (Replaces: 5304460605) |
|
Immediately | $ 10.85 | ||||
| 21A | 297197500 | Screw,door Stop Mtg ,fh38-16x.750 ,p Twin |
|
$ 14.46 | |||||
| 22A | 7297006800 | Bearing-hinge,btm, W/o`ring |
|
- | |||||
| 27A | 240396102 | Retainer,tall Bottle (Replaces: 7240396102) |
|
$ 19.13 | |||||
| 48C | 7297108200 | Bin-door,gallon |
|
- | |||||
| 48D | 7240396302 | Snugger,paddle Type |
|
- | |||||
| NI | 75304406520 | Clip,panel Mtg Kit ,(40) |
|
- | |||||
| NI | 7297176200 | Bracket,retainer ,btm |
|
- |
