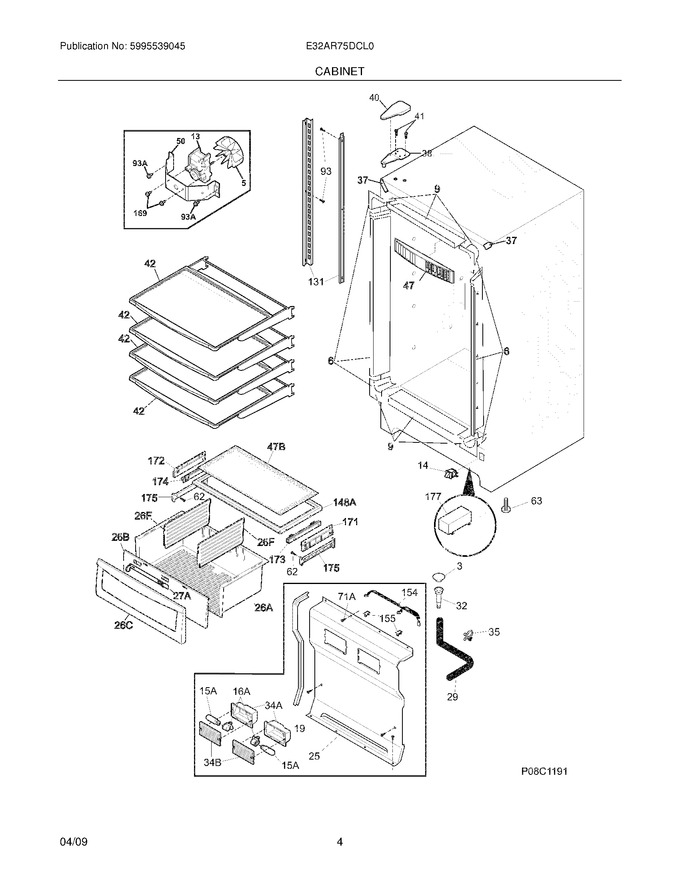

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7216503100		Screen-drain		Appelez-nous	-
5	7297259600		Fan Blade,evaporator		Appelez-nous	-
6	7297200600		Breaker Kit W/corners,no Lock Slot		Appelez-nous	-
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom   (Replaces: 7297200100)				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 7216998000)			Immediately	$ 70.16
19	7216204902		Gasket-evap Cover		Appelez-nous	-
25	297099254		Cover-evaporator				$ 97.13
29	7216313501		Hose-drain		Appelez-nous	-
32	75308005500		Drain		Appelez-nous	-
35	7216273000		Clip,drain Hose		Appelez-nous	-
37	7241611301		Trim-cabinet Corner,white ,(2)		Appelez-nous	-
38	7297283800		Hinge-upper		Appelez-nous	-
40	7297164402		Cover-hinge,silver		Appelez-nous	-
41	7240578902		Screw,hex Head ,1/4-20 X 5/8		Appelez-nous	-
42	7297108901		Shelf-sliding,(4)		Appelez-nous	-
47	7297133000		Baffle-plate		Appelez-nous	-
50	708013207		Bracket-fan Motor		Appelez-nous	-
62	7297142600		Screw,blunt ,8-32 X 5/8		Appelez-nous	-
63	216396900		Screw,leveling Foot ,plastic ,adjustable   (Replaces: 7216396900)			Immediately	$ 38.39
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	7297108300		Channel-shelf Mtg,side ,(2)		Appelez-nous	-
154	7297053000		Wire,jumper		Appelez-nous	-
155	75303313703		Clip,(2)		Appelez-nous	-
169	7216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)		Appelez-nous	-
171	7297092700		Bracket,crisper Cover ,rh		Appelez-nous	-
172	7297092701		Bracket,crisper Cover ,lh		Appelez-nous	-
173	7297107600		Slide,crisper ,rh		Appelez-nous	-
174	7297107601		Slide,crisper ,lh		Appelez-nous	-
175	7297099500		Support-crisper		Appelez-nous	-
177	7297116000		Electronics,theater Lgt		Appelez-nous	-
15A	7297048600		Light Bulb/lamp,short		Appelez-nous	-
16A	7297139501		Socket,light/lamp ,25 W		Appelez-nous	-
26A	7297091601		Case-crisper,deep		Appelez-nous	-
26B	7297091800		Panel,crisper Window		Appelez-nous	-
26C	7297091703		Panel,crisper Front		Appelez-nous	-
26F	7297099401		Divider-crisper,deep		Appelez-nous	-
27A	240362201		Control-humidity   (Replaces: 7240362201)				$ 69.46
34A	7297053100		Shield-light		Appelez-nous	-
34B	7297053200		Lens,light		Appelez-nous	-
47B	7297102701		Insert-pan Cover,glass ,lower		Appelez-nous	-
71A	7297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	7216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping		Appelez-nous	-
F13	7297250000		Motor,fan ,115 V		Appelez-nous	-
F148	7297092502		Frame-crisper Cover,lower		Appelez-nous	-
NI	7297001704		Insulation,24`` ,drain Tube		Appelez-nous	-
NI	7297174300		Screw,no.8 ,18x.63 ,self Pierce		Appelez-nous	-
NI	7297193901		Kit,panel Mounting ,w/instructions		Appelez-nous	-
NI	7297226505		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
