SELECT A DIAGRAM

01 - Cover


03 - Door

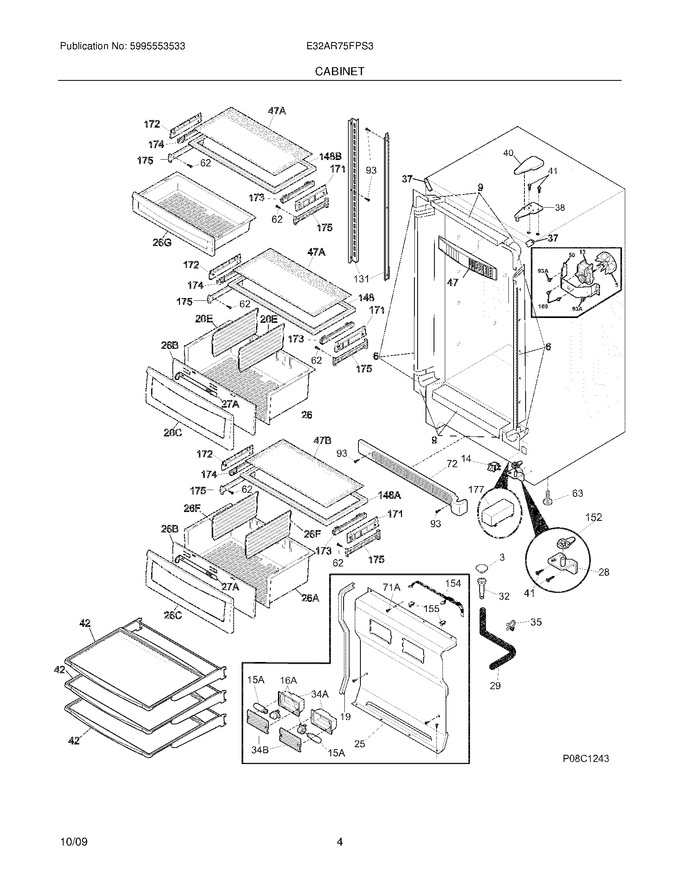

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade,evaporator				$ 9.50
6	297200600		Breaker Kit W/corners,no Lock Slot				$ 52.36
9	297200100		Breaker Kit W/corners,32`` ,top And Bottom				$ 59.28
14	216822900		Switch,light/lamp ,ramp   (Replaces: 216998000)			Immediately	$ 70.16
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099254		Cover-evaporator				$ 97.13
26	A11791811		Case-crisper,shallow   (Replaces: 297091600)				$ 211.52
28	297179300		Hinge,bottom/rh				$ 48.68
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Drain Hose				$ 22.42
37	5303918606		Trim-cabinet Corner,white ,(2)   (Replaces: 241611301)				$ 7.09
38	297283803		Hinge-upper   (Replaces: 297164300)			Immediately	$ 19.52
40	297164402		Cover-hinge,silver				$ 55.28
41	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
42	297108901		Shelf-sliding		Appelez-nous	-
47	297133000		Baffle-plate		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
62	297142600		Screw,blunt ,8-32 X 5/8				$ 13.01
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 297036900)				$ 39.29
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
131	297130200		Channel-shelf Mtg,side ,(2)				$ 55.99
148	297092500		Frame-crisper Cover,upper				$ 195.15
152	216974600		Bearing,hinge Closer				$ 16.36
154	297053000		Wire,jumper				$ 57.42
155	30534600		Clip,(2)   (Replaces: 5303313703)				$ 3.79
169	216912401		Screw,hex Washer Head ,8-32 X 0.500 ,bracket Fan Mtr,(2)				$ 12.76
171	297092700		Bracket,crisper Cover ,rh				$ 55.36
172	297092701		Bracket,crisper Cover ,lh				$ 56.88
173	5304515502		Slide,crisper ,rh   (Replaces: 297107600)				$ 77.36
174	5304515501		Slide,crisper ,lh   (Replaces: 297107601)				$ 78.08
175	297099500		Support-crisper			Immediately	$ 47.03
177	297116000		Electronics,theater Lgt				$ 565.68
15A	241552802		Light Bulb/lamp,short   (Replaces: 297048600)			Immediately	$ 50.45
16A	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
26A	297091601		Case-crisper,deep				$ 106.63
26B	297091800		Panel,crisper Window				$ 109.67
26C	297091703		Panel,crisper Front				$ 92.19
26E	297099400		Divider-crisper,shallow				$ 67.83
26F	297099401		Divider-crisper,deep		Appelez-nous	-
26G	297123700		Case-deli				$ 209.18
27A	240362201		Control-humidity				$ 69.46
34A	297053100		Shield-light		Appelez-nous	-
34B	297053200		Lens,light				$ 43.95
47A	297102700		Insert-pan Cover,glass				$ 38.38
47B	297102701		Insert-pan Cover,glass ,lower				$ 41.75
71A	297146800		Screw,8-18ab X 0.470		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
F13	297309000		Motor,fan ,115 V   (Replaces: 297250000)			Immediately	$ 55.32
F148	297092503		Frame-deli Cover				$ 174.60
F148	297092502		Frame-crisper Cover,lower				$ 205.07
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	297226504		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
