SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

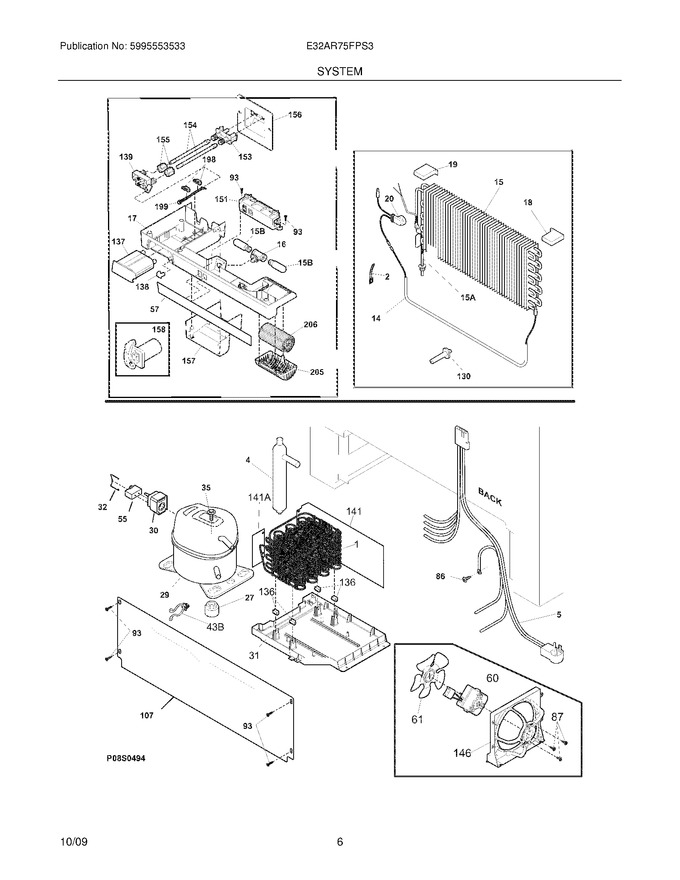

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297152200		Condenser,dynamic				$ 171.33
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216730700		Heater-defrost   (Replaces: 297216100)			Immediately	$ 116.44
16	241622802		Socket-light   (Replaces: 241507803)				$ 65.93
17	297110301		Box-control,front				$ 113.93
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	216731001		Thermostat, Defrost			Immediately	$ 81.75
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954235		Controller,compressor   (Replaces: 216954205)			Immediately	$ 87.21
31	297165800		Pan-drain				$ 89.15
32	216649200		Clip,controller				$ 6.30
35	297177200		Bolt,compressor		Appelez-nous	-
57	297110901		Overlay-control Box				$ 82.17
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	297165400		Shield,compressor ,compartment				$ 19.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
138	240397301		Button-filter Release				$ 91.76
139	240396002		Base-water Filter			Immediately	$ 119.66
141	297164200		Divider,air Flow				$ 26.23
146	297164000		Shroud-fan Orfice				$ 76.97
153	297110200		Hose-junction Attachment				$ 18.90
154	297112901		Hose,water Inlet				$ 50.47
155	241518001		Nut,1/2-20 ,nylon ,water Hose ,(2)				$ 23.86
156	297110100		Retainer,hose Junction				$ 26.80
157	297110500		Raceway,water Filter		Appelez-nous	-
158	297111000		Standoff		Appelez-nous	-
198	240397401		Retainer				$ 59.54
199	240397501		Rod				$ 55.57
205	297108500		Cap-air Filter		Appelez-nous	-
206	241504902		Filter-air		Appelez-nous	-
15A	297217900		Heat Exchanger   (Replaces: 297231800)			Immediately	$ 91.82
15B	5304517886		Light Bulb,short ,blue Tint ,40w   (Replaces: 297114000)			Immediately	$ 73.06
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
F137	EWF2CBPA		Filter,water ,carbon Cassette ,front ,with O`rings   (Replaces: 240396405)			Immediately	$ 115.61
F141	297194700		Divider,small ,air Flow		Appelez-nous	-
F15	297414901		Evaporator   (Replaces: 216997300)			Immediately	$ 171.34
F151	297112402		Electronic Control,assy		Appelez-nous	-
F154	297130900		Cap,hose Attachment				$ 7.75
F199	240398401		Spring-filter Release Rod				$ 59.16
F29	5304507765		Compressor,w/o Electricals   (Replaces: 297237300)			Immediately	$ 677.23
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297171500		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run,220 Vac ,12 Microfarad			Immediately	$ 74.75
FNI	297366805		Cord-power,flat   (Replaces: 297169901)				$ 68.68
NI	5304455649		Screw,pan Hd ,6-20 X 0.438				$ 17.01
NI	216502500		Sleeve,suction Line				$ 10.85
NI	240555002		Screw-no.8-32 X 3/8			Immediately	$ 13.46
NI	297110400		Thermistor			Immediately	$ 72.68
NI	297108000		Jumper-wire,electronic W/lt		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
