SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

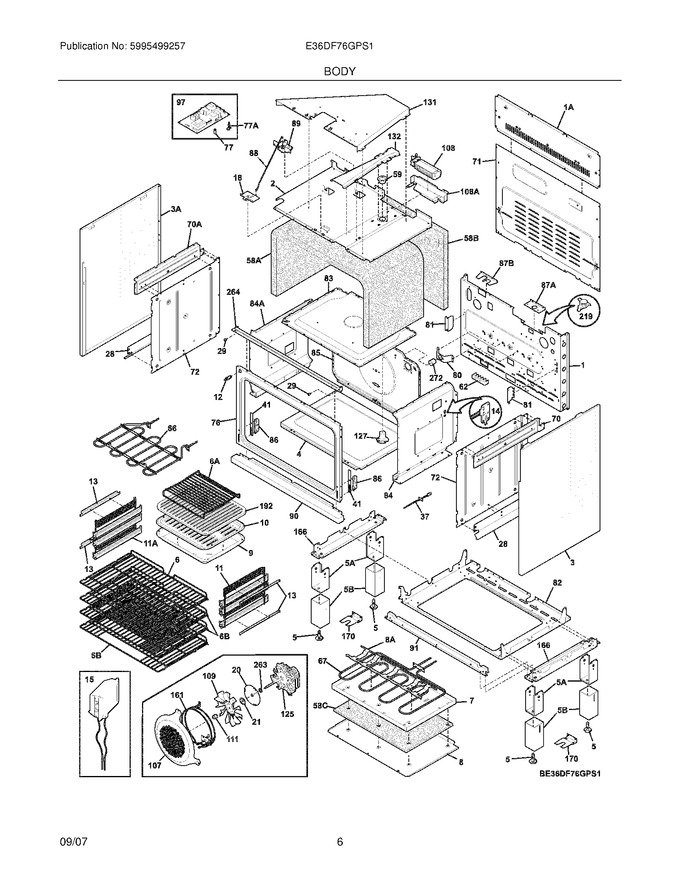

07 - Body


09 - Maintop


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259251		Back,main		Appelez-nous	-
2	318258955		Shield,insulation ,upper		Appelez-nous	-
3	318352750		Panel,side ,stainless ,lh		Appelez-nous	-
4	318364102		Liner,oven Bottom		Appelez-nous	-
5	318175506		Screw,leveling				$ 38.28
6	318240151		Shelf,oven ,fixed				$ 238.67
7	318297351		Box,bake Element		Appelez-nous	-
8	318359550		Panel,service		Appelez-nous	-
9	318138801		Pan,broiler		Appelez-nous	-
10	318126401		Insert,broiler Pan		Appelez-nous	-
11	318240054		Glide & Support Assy,oven Shelves ,rh				$ 531.88
12	316445501		Switch,oven Light ,door Frame				$ 90.01
13	318603908		Bracket,ladder Mtg. ,(4)				$ 159.26
14	318903401		Switch,rack Sensing		Appelez-nous	-
15	318241008		Lamp,oven ,(2) ,halogen   (Replaces: 318241002)			Immediately	$ 128.93
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
28	318369310		Bracket,side Panel ,(2)		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 18.95
41	318366603		Spacer,front Frame   (Replaces: 318366601)		Appelez-nous	-
59	318072577		Duct,oven Vent				$ 16.30
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255851		Element,broil ,4000w				$ 311.85
70	318302752		Shield,insulation ,right		Appelez-nous	-
71	318260050		Panel,rear Box ,lower				$ 124.01
72	318259150		Shield,insulation ,sides ,(2)		Appelez-nous	-
76	318364902		Front,oven		Appelez-nous	-
77	316247900		Spacer,power Board ,(3)				$ 44.65
80	318364800		Plate,oven Mtg		Appelez-nous	-
81	318373700		Bracket,oven ,(2)		Appelez-nous	-
82	318258751		Shield,insulation ,lower		Appelez-nous	-
83	318364202		Liner,oven Top		Appelez-nous	-
84	318364304		Liner,oven Side ,rh		Appelez-nous	-
85	318364408		Liner,oven Back		Appelez-nous	-
86	318241406		Receptacle,hinge ,(2)				$ 75.83
88	318376500		Rod,latch		Appelez-nous	-
90	318355050		Trim,bottom ,stainless				$ 310.47
91	318376301		Bracket,reinforcement		Appelez-nous	-
97	316455705		Board,power ,relay				$ 445.19
107	318906601		Cover,fan				$ 202.63
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357002		Adapter,vent Tube		Appelez-nous	-
131	318272950		Box,vent		Appelez-nous	-
132	318347800		Chimney		Appelez-nous	-
166	318352550		Bracket,leveling Leg ,(2) ,reinforcement		Appelez-nous	-
170	318335703		Anti-tip & Accessories				$ 38.26
263	316008401		Washer,flat   (Replaces: 316136500)				$ 11.34
264	318257753		Trim,oven ,black ,front		Appelez-nous	-
272	318249402		Tube,protector		Appelez-nous	-
11A	318240055		Glide & Support Assy,oven Shelves ,lh				$ 477.44
1A	318260051		Panel,rear Box ,upper		Appelez-nous	-
3A	318352751		Panel,side ,stainless ,rh		Appelez-nous	-
58A	318362117		Insulation,top & Sides		Appelez-nous	-
58B	318362116		Insulation,rear		Appelez-nous	-
58C	318294913		Insullation,bake Element		Appelez-nous	-
5A	318368850		Bracket,leveling Leg ,(4)		Appelez-nous	-
5B	318352450		Cover,leveling Leg ,(4)		Appelez-nous	-
6A	318365800		Rack,broiler Pan				$ 52.46
6B	318240251		Shelf,oven ,(3) ,extendable				$ 272.35
70A	318302753		Shield,insulation ,left		Appelez-nous	-
77A	316114100		Spacer,(4)				$ 60.96
84A	318364314		Liner,oven Side ,lh		Appelez-nous	-
87A	318111806		Plate,cord Set Mtg				$ 11.68
87B	318111812		Plate,cord Set Mtg		Appelez-nous	-
8A	318313605		Bracket,bake Element		Appelez-nous	-
F108	318073028		Motor,blower   (Replaces: 318073018)			Immediately	$ 271.69
F108A	318251300		Bracket,fan Support				$ 54.60
F125	5304467898		Motor,fan   (Replaces: 316415800)			Immediately	$ 225.67
F161	318255511		Element,convection ,2500 W   (Replaces: 318255505)			Immediately	$ 110.20
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F219	318004902		Switch,thermal			Immediately	$ 71.44
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318254905		Element,bake ,3000w				$ 238.14
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303212739		Plate-ground Strap		Appelez-nous	-
NI	318391100		Screw,glide Mtg ,(2)				$ 141.75
NI	5304463708		Nut, Bracket Mtg, (12)				$ 39.66
NI	318370365		Wriring Harness,main		Appelez-nous	-
NI	318235301		Connector Assy.,w/3 Lugs ,& Instructions   (Replaces: 318235300)				$ 29.06
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304463705		Screw,btm Trim ,8-18 X 1/2 ,(4)		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318370325		Wriring Harness,latch		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304449778		Screw,bracket Mtg. ,8 X 1/2`` ,(2)		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
