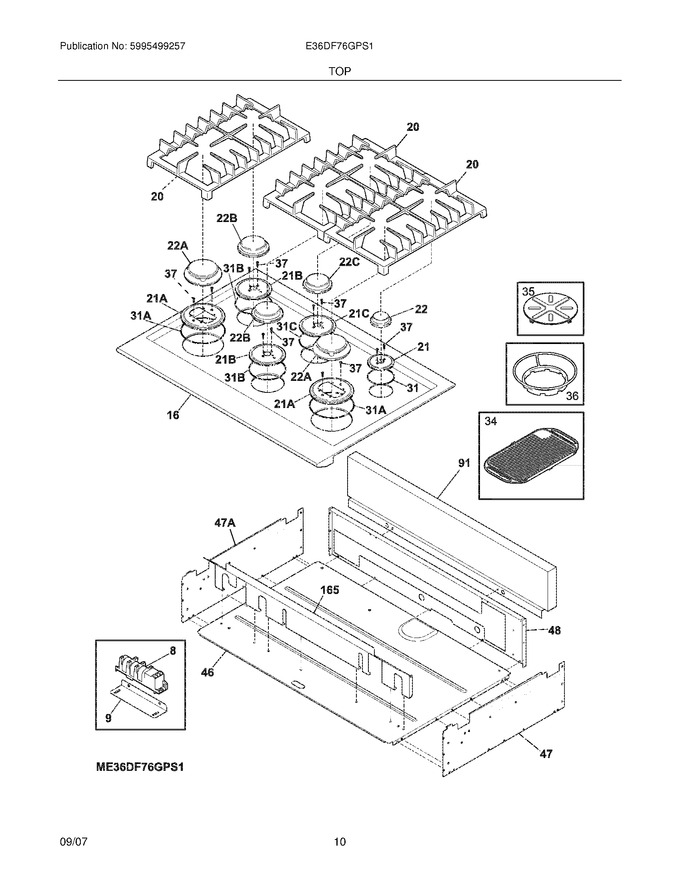

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	318387300		Bracket,spark Module		Appelez-nous	-
16	318185217		Main Top Assy,frame/glass ,stainless/black		Appelez-nous	-
20	318361402		Grate,top Burner ,black ,(3) ,double		Appelez-nous	-
21	316514800		Skirt,5k Burner ,black				$ 87.10
22	316510902		Cap,5k Burner ,black				$ 166.32
31	316515200		Seal,5k Burner				$ 23.42
34	318251600		Griddle				$ 240.03
35	318254200		Simmer Plate				$ 67.83
36	318254300		Support,wok				$ 259.41
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
46	318242950		Panel,bottom		Appelez-nous	-
47	318241706		Panel,side ,rh		Appelez-nous	-
48	318241850		Panel,rear		Appelez-nous	-
91	318353005		Backplash,stainless		Appelez-nous	-
165	318355150		Deflector,heat		Appelez-nous	-
21A	316515100		Skirt,18k Burner ,black				$ 63.47
21B	316515000		Skirt,14k Burner ,black ,(2)				$ 71.56
21C	316514900		Skirt,9.5k Burner ,black				$ 49.72
22A	316511502		Cap,18k Burner ,black ,(2)				$ 248.45
22B	316511302		Cap,14k Burner ,black ,(2)				$ 171.15
22C	316511102		Cap,9.5k Burner ,black				$ 169.84
31A	316515203		Seal,18k Burner ,(2)				$ 70.31
31B	316515202		Seal,14k Burner ,(2)				$ 81.89
31C	316515201		Seal,9.5k Burner		Appelez-nous	-
47A	318241707		Panel,side ,lh		Appelez-nous	-
F8	808608804		Module,spark   (Replaces: 318079001)			Immediately	$ 76.06
NI	318163601		Cleaner-cooktop				$ 0.42
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
