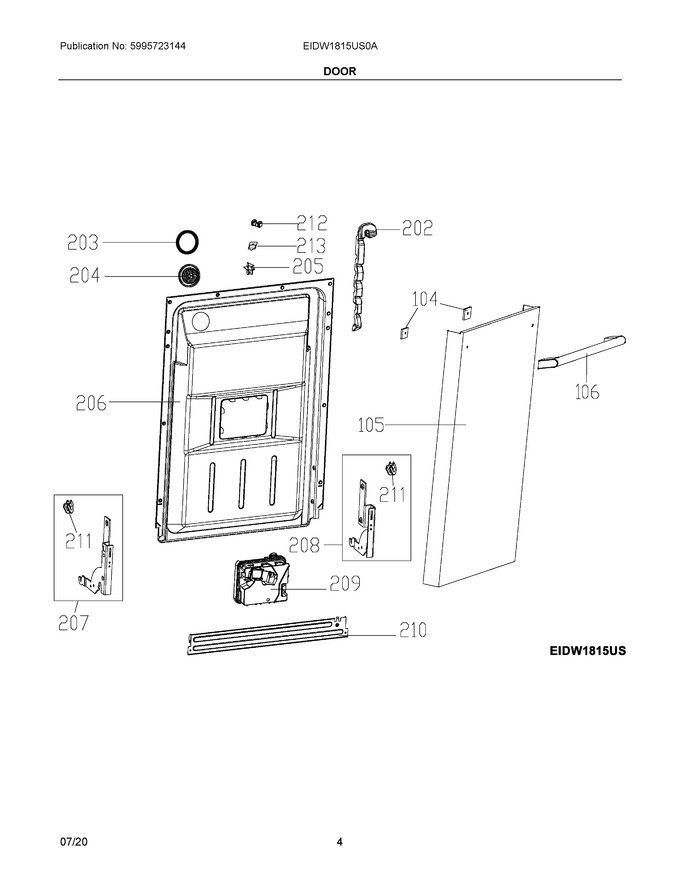

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
104	5304513820		Plate, Handle Support, (2)   (Replaces: 5304483645)				$ 18.43
105	5304522075		Door, Outer, Stainless				$ 248.07
106	5304522076		Handle, Door, Stainless				$ 283.50
202	5304522077		Pipe, Condensor		Appelez-nous	-
203	5304519221		Seal, Air Vent, Door Liner				$ 12.65
204	5304519222		Nut, Air Vent, Door Liner				$ 60.01
205	5304519223		Hook, Door Lock				$ 60.72
206	5304522078		Liner, Door, Inner				$ 221.84
207	5304519980		Hinge Kit, Lh, W/fric Grommet				$ 129.69
208	5304519981		Hinge Kit, Rh, W/fric Grommet				$ 129.69
209	5304522079		Dispenser, Detergent				$ 201.70
210	5304519228		Bracket, Reinforcement, Door Hinge				$ 76.63
211	5304519229		Grommet, Hinge Friction		Appelez-nous	-
212	5304519230		Block, Door Lock		Appelez-nous	-
213	5304519231		Seal, Door Lock		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
