SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks


08 - Wiring Diagram

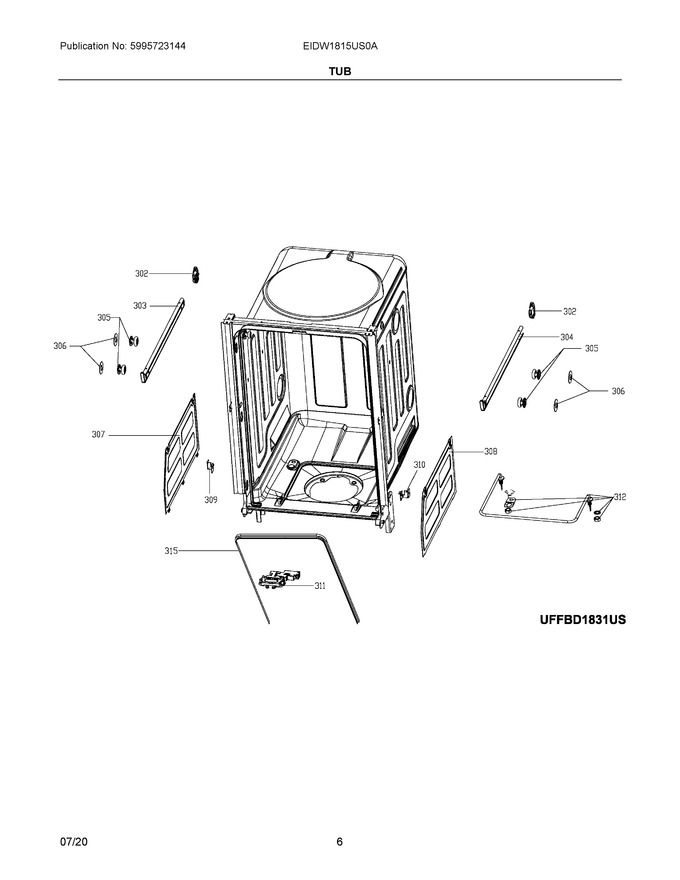

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
302	5304519232		Cap, Basket Glide, Rear		Appelez-nous	-
303	5304519233		Glide, Upper Rack, Lh		Appelez-nous	-
304	5304519234		Glide, Upper Rack, Rh		Appelez-nous	-
305	5304519235		Roller, Tub, Upper Rack				$ 59.23
306	5304519236		Holder, Rack Roller		Appelez-nous	-
307	5304519237		Panel, Side, Lh		Appelez-nous	-
308	5304519238		Panel, Side, Rh		Appelez-nous	-
309	5304519239		Bracket, Lh				$ 78.80
310	5304519240		Bracket, Rh				$ 78.80
311	5304519241		Latch Assembly, Door Lock				$ 97.50
312	5304519242		Heater Assembly				$ 91.82
315	5304538824		Gasket, Tub   (Replaces: 5304519243)			Immediately	$ 15.52
NI	5304522086		Kit, Installation				$ 26.03

    View Diagram in Separate Window       Print Part List
