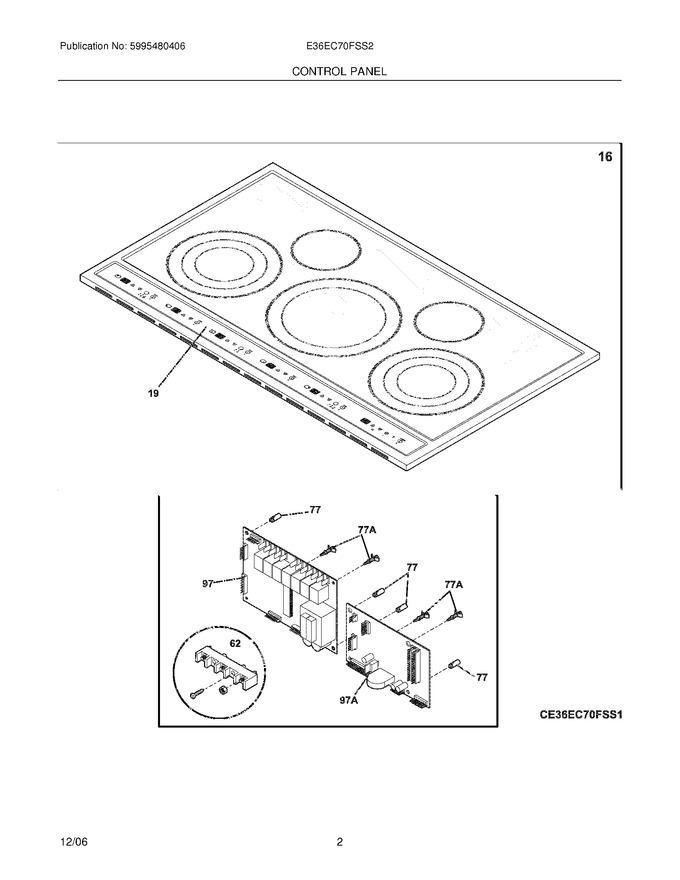

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 77 | 316247900 | Spacer,power Board ,(4) |
|
$ 44.65 | |||||
| 77A | 316114100 | Spacer,(2) |
|
$ 60.96 | |||||
| 97A | 316442042 | Board,power ,uib |
|
- | |||||
| F16 | 318282526 | Main Top Assy,glass/steel ,black/stainless,w/touch Control |
|
$ 2,086.93 | |||||
| F19 | 318353600 | Panel Assembly,glass ,w/controls |
|
$ 1,878.82 | |||||
| F62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| F97 | 316442113 | Board,power ,relay |
|
$ 269.66 | |||||
| NI | 318078557 | Box & Wires Assy |
|
- | |||||
| NI | 318083050 | Harness,wiring ,interface |
|
$ 145.27 | |||||
| NI | 5304400192 | Retainer Wire |
|
- |
