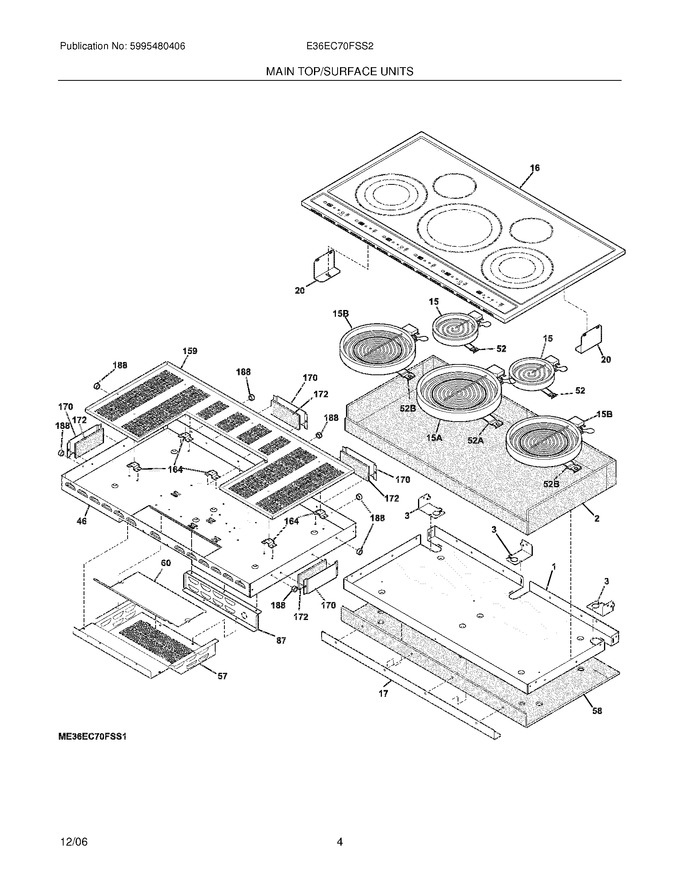

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318354100		Shield,heat		Appelez-nous	-
2	318344520		Insulation,elements		Appelez-nous	-
3	318371400		Cover,deflector		Appelez-nous	-
17	318371510		Bracket,insulation		Appelez-nous	-
20	318121910		Bracket,retainer		Appelez-nous	-
46	318354000		Box,burner		Appelez-nous	-
52	318122006		Spring,element Mtg ,small				$ 66.25
57	318354300		Box,service		Appelez-nous	-
58	318371310		Insulation		Appelez-nous	-
60	318371600		Deflector,air		Appelez-nous	-
87	318354400		Bracket,cable		Appelez-nous	-
159	318371710		Deflector,heat		Appelez-nous	-
164	318252901		Support,box ,(6)		Appelez-nous	-
170	318124913		Screen,thermal ,(4)		Appelez-nous	-
172	318344521		Insulation,screen ,(4)		Appelez-nous	-
188	318531702		Spacer,(6)   (Replaces: 318014110)				$ 9.93
15No.	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
52A	318122011		Spring,element Mtg ,1200w/1800w				$ 62.14
52B	318122010		Spring,element Mtg ,3000w				$ 62.51
F15A	316282100		Element,surface ,6/9 ,1700/2700w ,dual Radiant   (Replaces: 318198934)			Immediately	$ 249.27
F15B	318297804		Element,surface ,triple ,800/900/1000				$ 345.24
F16	318282526		Main Top Assy,glass/steel ,black/stainless,w/touch Control				$ 2,086.93
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5303288566		Screw,8 X 1/4 ,(4)   (Replaces: 5303323130)				$ 2.12
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	131202300		Screw,8 X 5/8 ,(6)   (Replaces: 3131048)			Immediately	$ 13.46
NI	318199467		Harness,wiring ,main		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(8)		Appelez-nous	-
