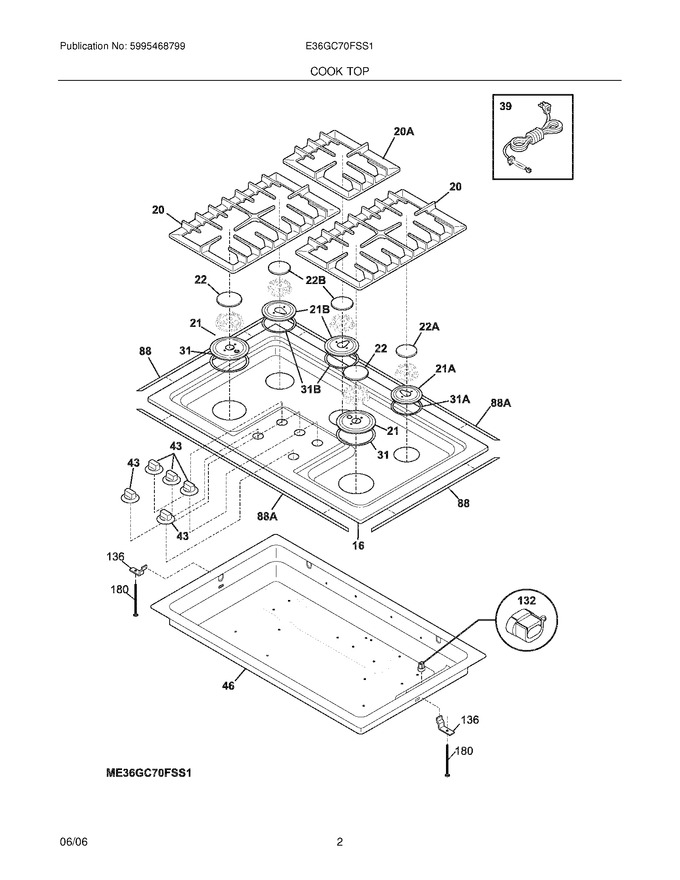

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318279452		Maintop,stainless		Appelez-nous	-
20	318358000		Grate,black ,(2)		Appelez-nous	-
21	316264803		Skirt,16/17k Burner ,black				$ 93.35
22	316271904		Cap,16/17k Burner ,black				$ 206.11
31	316242004		Seal,16/17k Burner				$ 18.95
39	318144006		Cord,service		Appelez-nous	-
43	318242221		Knob,control ,(6)			Immediately	$ 110.40
46	318279000		Box,burner		Appelez-nous	-
88	318280102		Gasket,cooktop ,21.48`` ,sides ,(2)   (Replaces: 318280101)				$ 59.12
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support,box ,(2)   (Replaces: 318264300)				$ 42.95
180	5303285443		Screw,lock Bracket ,10-24 X 2.00		Appelez-nous	-
20A	318221766		Grate,black ,center		Appelez-nous	-
21A	316241904		Skirt,5k Burner ,black				$ 87.75
21B	316241804		Skirt,9.5k Burner ,black ,(2)				$ 84.74
22A	316206604		Cap,5k Burner ,black				$ 102.69
22B	316213505		Cap,9.5k Burner ,black ,(2)				$ 102.30
31A	316242003		Seal,5k Burner				$ 15.17
31B	316242002		Seal,9.5k Burner				$ 25.02
88A	318280102		Gasket,cooktop ,35.78`` ,front/back ,(2)				$ 59.12
NI	318163602		Cleaner,stainless Steel				$ 26.51
