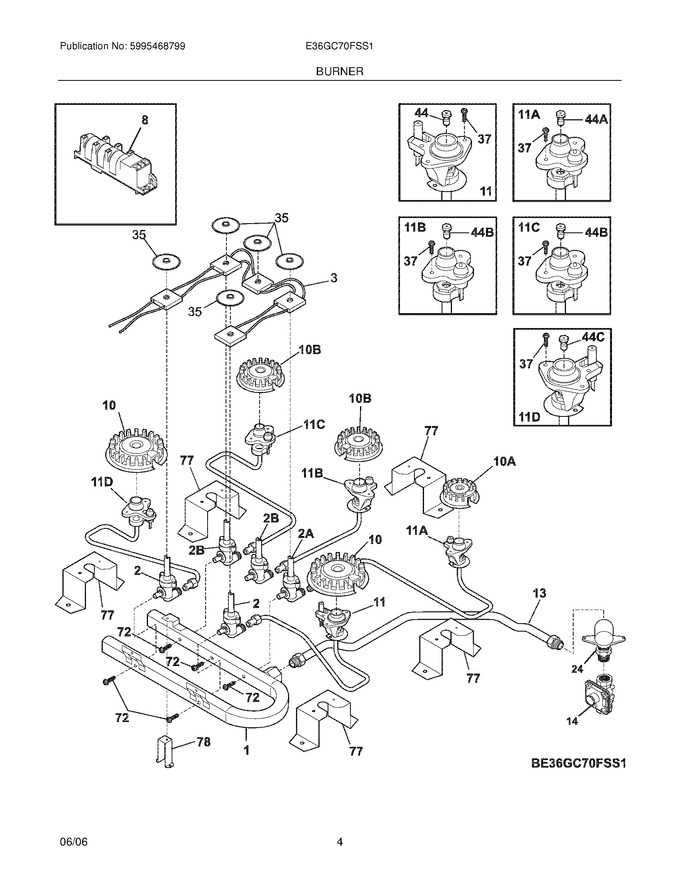

05 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 76.06 | ||||
| 13 | 318054509 | Connector,manifold Tube |
|
$ 46.41 | |||||
| 24 | 318054000 | Elbow Fitting |
|
- | |||||
| 35 | 318146301 | Bushing |
|
$ 34.34 | |||||
| 37 | 316240600 | Screw,assy Mtg ,ignitor/orifice |
|
Immediately | $ 12.13 | ||||
| 44 | 318362300 | Orifice,top Burner ,17k |
|
- | |||||
| 72 | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 14.18 | ||||
| 77 | 318192606 | Bracket,burner Mtg ,(4) |
|
- | |||||
| 78 | 318280500 | Support,manifold Pipe |
|
- | |||||
| 44A | 316237903 | Orifice-top Burner,5k |
|
$ 67.83 | |||||
| 44B | 316237902 | Orifice,top Burner ,9.5k |
|
$ 65.22 | |||||
| 44C | 318362302 | Orifice,top Burner ,16k |
|
- | |||||
| F1 | 318177207 | Manifold Pipe |
|
- | |||||
| F10 | 316223300 | Burner,sealed ,16/17k |
|
$ 117.66 | |||||
| F10A | 316206400 | Burner,sealed ,5k |
|
- | |||||
| F10B | 316212400 | Burner,sealed ,9.5k |
|
Immediately | $ 32.62 | ||||
| F11 | 318306246 | Ignitor/orifice Assy.,top Burner ,right Front,17k ,w/holder ,tube |
|
$ 177.20 | |||||
| F11A | 318221343 | Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube |
|
$ 176.51 | |||||
| F11B | 318221342 | Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder ,tube |
|
$ 169.94 | |||||
| F11C | 318221339 | Ignitor/orifice Assy.,top Burner ,left Rear,9.5k ,w/holder ,tube |
|
$ 209.58 | |||||
| F11D | 318306245 | Ignitor/orifice Assy.,top Burner ,left Front,16k ,w/holder ,tube |
|
- | |||||
| F14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| F2 | 318233940 | Valve,top Burner ,16/17k |
|
$ 162.23 | |||||
| F2A | 318233900 | Valve,top Burner ,5000 Btu |
|
$ 161.53 | |||||
| F2B | 318233910 | Valve,top Burner ,9500 Btu |
|
$ 132.56 | |||||
| F3 | 318232612 | Wiring Harness,w/igntr Switch |
|
$ 190.58 | |||||
| NI | 318199780 | Wiring Harness,ignitor (Replaces: 318199743) |
|
$ 100.56 | |||||
| NI | 08011955 | Screw,10-24 X 0.375 ,square Drive |
|
Immediately | $ 9.36 | ||||
| NI | 5303311532 | Screw,6-32 X 1/4`` ,back |
|
- | |||||
| NI | 5303307980 | Screw,8-32 X 0.437 ,(4) |
|
Immediately | $ 14.18 | ||||
| NI | 5304403558 | Screw,10-16 X 0.250 |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 318127429 | Lp Conversion Kit |
|
$ 99.80 |
