SELECT A DIAGRAM

01 - Cover

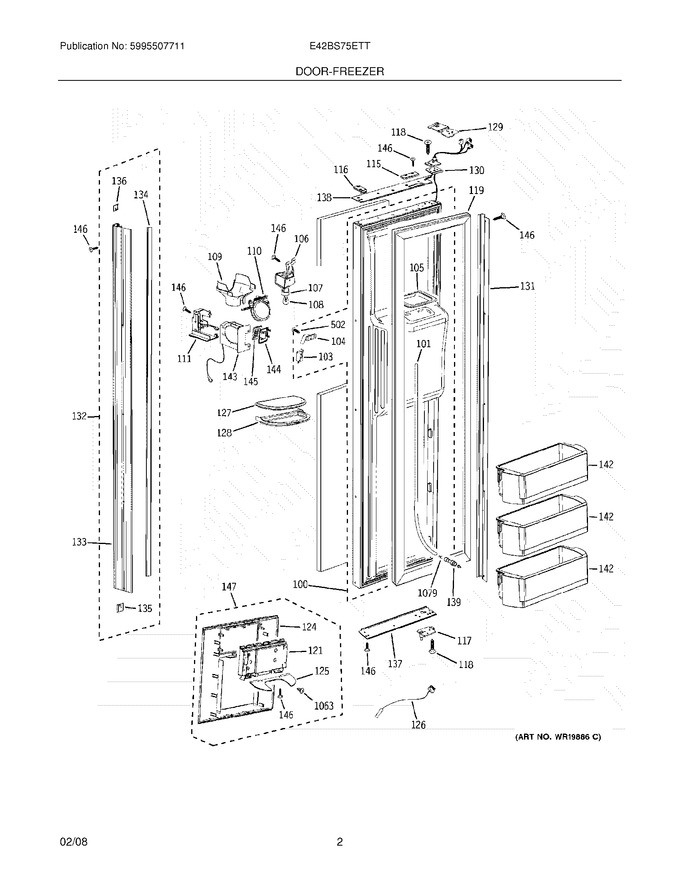

03 - Door-freezer


05 - Door-fresh Food/refr


07 - Cabinet-freezer


09 - Shelves-freezer


11 - Ice Maker/dispenser


13 - Cabinet-fresh Food/refr


15 - Shevles-fresh Food/refr


17 - Unit/system


19 - Cabinet Upper


21 - Cabinet Lower


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
100	5304449961		Door-frzr,galvinize Steel ,complete Assy		Appelez-nous	-
101	5304448839		Tube,water ,door		Appelez-nous	-
103	5304448840		Switch-micro		Appelez-nous	-
104	5304448842		Cap		Appelez-nous	-
105	5304448843		Trim-disp Chute		Appelez-nous	-
106	5304448844		Bracket-light Socket		Appelez-nous	-
107	5304448845		Socket-light		Appelez-nous	-
108	5304448851		Light Bulb		Appelez-nous	-
109	5304449962		Chute-ice		Appelez-nous	-
110	5304448847		Door Assy-ice Chute,w/gasket,insul		Appelez-nous	-
111	5304448848		Bracket		Appelez-nous	-
115	5304448852		Strike-door		Appelez-nous	-
116	5304448853		Door Stop		Appelez-nous	-
117	5304448854		Bracket-lower Hinge				$ 323.95
118	5304448855		Screw				$ 17.90
119	5304449963		Gasket-frzr Door,magnetic		Appelez-nous	-
121	5304449964		Control,dispenser				$ 1,255.61
124	5304449965		Cover-module		Appelez-nous	-
125	5304448860		Shield,light		Appelez-nous	-
126	5304448861		Thermistor				$ 331.08
127	5304448862		Drip Tray,stainless				$ 175.41
128	5304449966		Drip Tray		Appelez-nous	-
129	5304448864		Bracket-upper Hinge				$ 301.40
130	5304449968		Shim		Appelez-nous	-
131	5304449967		Trim-door,aluminum ,side		Appelez-nous	-
132	5304449969		Handle Assembly,aluminum				$ 645.72
133	5304449970		Handle,aluminum		Appelez-nous	-
134	5304449971		Pad,handle		Appelez-nous	-
135	5304449972		End Cap		Appelez-nous	-
136	5304449973		End Cap		Appelez-nous	-
137	5304449974		Trim,door ,bottom		Appelez-nous	-
138	5304449975		Trim-door,top		Appelez-nous	-
139	5304448865		Connector-water,straight		Appelez-nous	-
142	5304448866		Bin-door		Appelez-nous	-
143	5304448867		Motor,dispenser ,w/cam		Appelez-nous	-
144	5304448868		Trim		Appelez-nous	-
145	5304448869		Actuator		Appelez-nous	-
146	5304448870		Screw,tapping		Appelez-nous	-
147	5304449976		Cover,dispenser		Appelez-nous	-
502	5304448965		Screw,tapping		Appelez-nous	-
F106	5304448872		Screw,tapping		Appelez-nous	-
F107	5304449109		Valve,fixer Water		Appelez-nous	-
