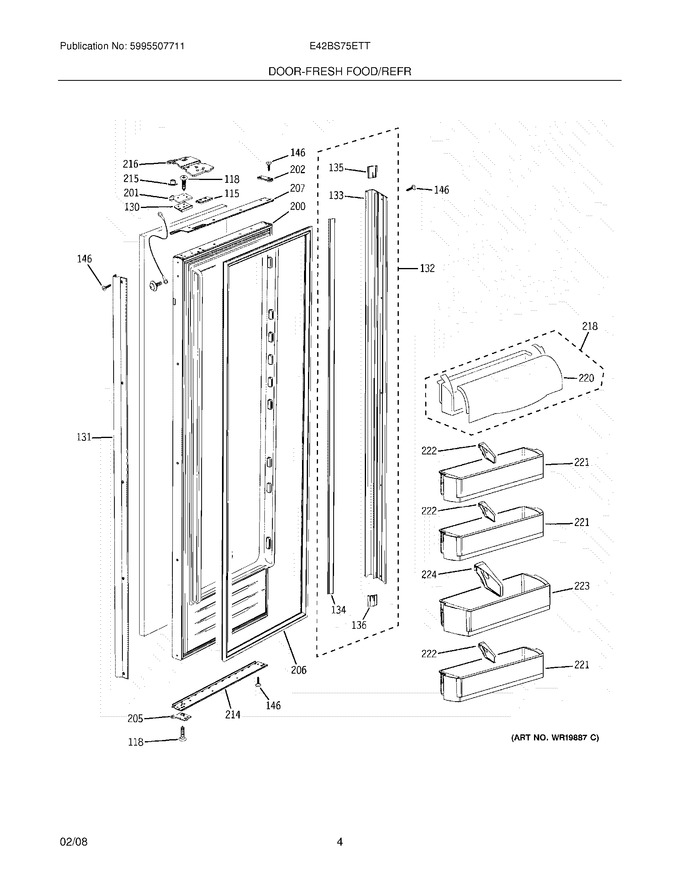

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
115	5304448852		Strike-door		Appelez-nous	-
118	5304448855		Screw				$ 17.90
130	5304449968		Shim		Appelez-nous	-
131	5304449967		Trim-door,aluminum ,side		Appelez-nous	-
132	5304449969		Handle Assembly,aluminum				$ 645.72
133	5304449970		Handle,aluminum		Appelez-nous	-
134	5304449971		Pad,handle		Appelez-nous	-
135	5304449972		End Cap		Appelez-nous	-
136	5304449973		End Cap		Appelez-nous	-
146	5304448870		Screw,tapping		Appelez-nous	-
200	5304449977		Door-refr,galvanize Steel ,complete Assy		Appelez-nous	-
201	5304448913		Bracket-upper Hinge		Appelez-nous	-
202	5304448914		Door Stop		Appelez-nous	-
205	5304448917		Bracket-lower Hinge		Appelez-nous	-
206	5304449978		Gasket-refr Door,magnetic		Appelez-nous	-
207	5304449979		Trim-door,top		Appelez-nous	-
214	5304449980		Trim-door,bottom		Appelez-nous	-
215	5304448926		Pin-hinge				$ 53.27
216	5304448924		Bracket-upper Hinge				$ 290.88
218	5304448925		Compartment-dairy,removable		Appelez-nous	-
220	5304448927		Door-dairy				$ 289.43
221	5304448928		Bin-door				$ 268.58
222	5304448929		Snugger,paddle Type ,small		Appelez-nous	-
223	5304448930		Bin-door,gallon				$ 411.02
224	5304448931		Snugger-door Bin,``paddle Type`` ,large		Appelez-nous	-
