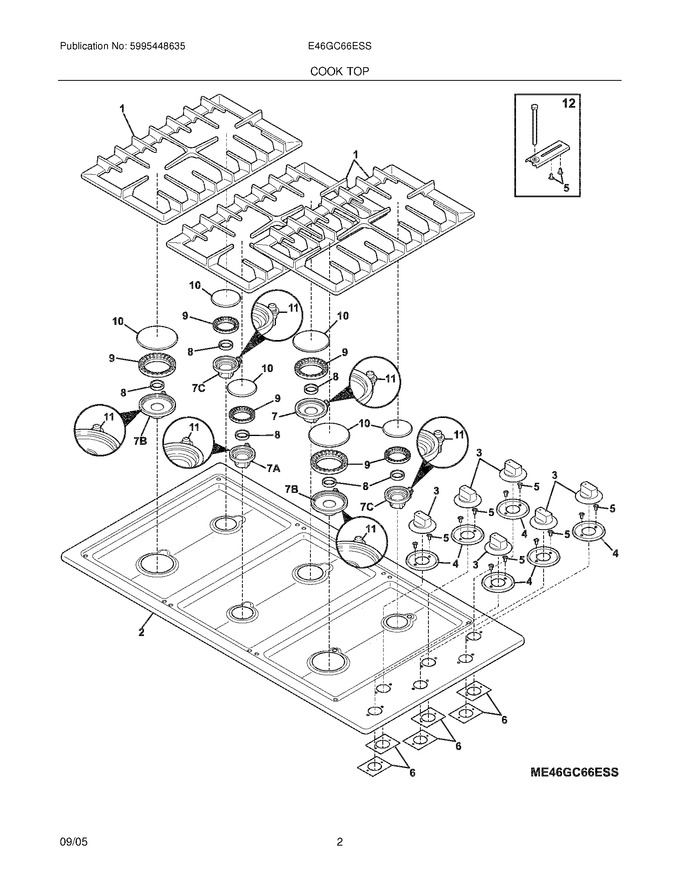

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446102		Grate,burner ,(3)		Appelez-nous	-
2	5304446144		Maintop,stainless		Appelez-nous	-
3	5304446029		Knob,burner ,(6)				$ 125.88
4	5304446031		Bezel,burner Knob ,(6)				$ 90.33
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(12)		Appelez-nous	-
6	5304446000		Plate,backing ,(6)		Appelez-nous	-
7	5304446011		Burner Head Assy,``c`` ,12500 Btu ,w/ignitor				$ 192.92
8	5304446028		Nut,burner Head ,brass ,(6)				$ 69.93
9	5304446104		Rings,burner ,set Of 6		Appelez-nous	-
10	5304446103		Caps,burner ,set Of 6		Appelez-nous	-
11	5304446026		Ignitor Assembly,burner ,(6)		Appelez-nous	-
12	5304445998		Bracket,assembly ,hold Down		Appelez-nous	-
7A	5304446010		Burner Head Assy,``b`` ,8500 Btu ,w/ignitor				$ 143.20
7B	5304446012		Burner Head Assy,``d`` ,14000 Btu ,(2) ,w/ignitor		Appelez-nous	-
7C	5304446034		Burner Head Assy,``b`` ,8500 Btu ,90 Deg Rear,(2) ,w/ignitor				$ 166.85
NI	5304446002		Jacket,ignitor Wire ,(6)				$ 13.12
NI	5304446032		Cleaner,stainless Steel		Appelez-nous	-
