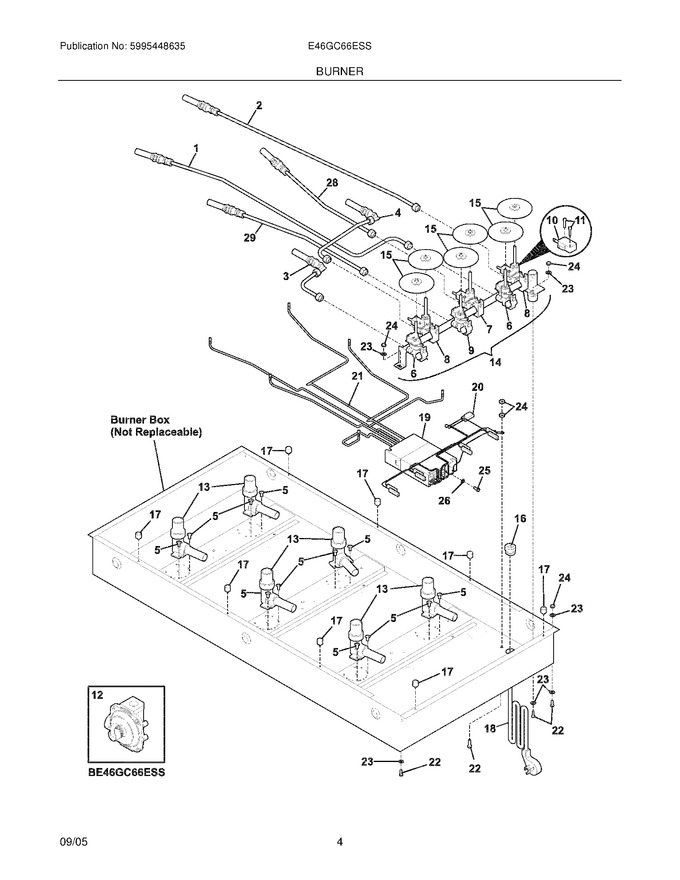

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304446120		Tubing Assembly,burner ,left Front		Appelez-nous	-
2	5304446122		Tubing Assembly,burner ,left Rear		Appelez-nous	-
3	5304446137		Tubing Assembly,burner ,right Front		Appelez-nous	-
4	5304446139		Tubing Assembly,burner ,right Rear		Appelez-nous	-
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(12)		Appelez-nous	-
6	5304446136		Valve Assembly,burner ,left/right Frnt ,(2),w/ignite Switch		Appelez-nous	-
7	5304446108		Valve Assembly,burner ,center Rear ,w/ignite Switch		Appelez-nous	-
8	5304446042		Valve Assembly,burner ,right/left Rear ,(2),w/ignite Switch		Appelez-nous	-
9	5304446107		Valve Assembly,burner ,center Front ,w/ignite Switch		Appelez-nous	-
10	5304446014		Switch,ignitor ,(6)				$ 72.98
11	5304446023		Screw,ignitor Switch ,(12)		Appelez-nous	-
12	5304446036		Regulator,pressure				$ 188.53
13	5304446001		Base,burner ,(6)				$ 180.80
14	5304446131		Manifold,assembly ,w/valves		Appelez-nous	-
15	5304446030		Protector,burner Valve ,(6) ,spill		Appelez-nous	-
16	5304446017		Bushing,strain Relief		Appelez-nous	-
17	5304446022		Bumper,snap In ,rubber ,(8)		Appelez-nous	-
18	5304446005		Cord,power Supply		Appelez-nous	-
19	5304446143		Module,assembly ,ignitor Spark				$ 392.67
20	5304446146		Harness,wiring		Appelez-nous	-
21	5304446119		Harness,assembly ,ignitor Wire		Appelez-nous	-
22	5304446021		Screw,phil Pan ,no.8-32 X 1/2 ,(4)		Appelez-nous	-
23	5304446024		Washer,no.8 X 7/16 Od ,3/64 T ,zinc ,(6)		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32 ,(5)		Appelez-nous	-
25	5304446020		Screw,phil Pan ,no.8-3/8		Appelez-nous	-
26	5304446016		Washer,nylon		Appelez-nous	-
28	5304446106		Tubing Assembly,burner ,center Rear		Appelez-nous	-
29	5304446105		Tubing Assembly,burner ,center Front		Appelez-nous	-
NI	5304446025		Tool,burner Ring ,removal				$ 126.73
NI	5304446027		Washer,burner Valve ,(6)		Appelez-nous	-
NI	5304446018		Hook & Loop,pair ,2`` X 3``		Appelez-nous	-
NI	5304446127		Conversion Kit,lp Gas		Appelez-nous	-
