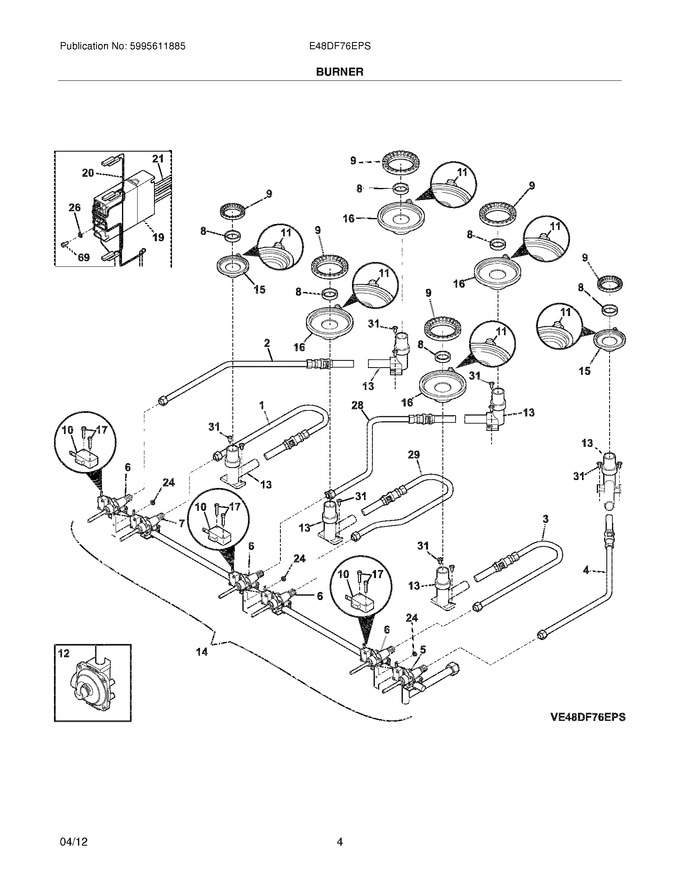

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304446028		Nut,burner Head ,brass				$ 69.93
9	5304452881		Rings,burner ,set Of 6				$ 464.94
13	5304446001		Base,burner ,(6)				$ 180.80
15	5304452825		Burner Head Assy,``b`` ,8500 Btu ,w/ignitor				$ 215.37
16	5304452826		Burner Head Assy,``d`` ,14000 Btu ,w/ignitor				$ 288.13
17	5304446023		Screw,ignitor Switch		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
26	5304452823		Washer,1/2``		Appelez-nous	-
31	5304452822		Screw,slot Hex Hd ,no.10 X 3/8``		Appelez-nous	-
69	5304452792		Screw,mounting		Appelez-nous	-
F1	5304453233		Tubing Assembly,burner ,left Front		Appelez-nous	-
F10	5304446014		Switch,ignitor				$ 72.98
F11	5304452824		Ignitor,burner ,(6)		Appelez-nous	-
F12	5304453240		Regulator,pressure		Appelez-nous	-
F14	5304453241		Manifold Assembly,w/valves		Appelez-nous	-
F19	5304452821		Module,ignitor Wire				$ 364.61
F2	5304453234		Tubing Assembly,burner ,left Rear		Appelez-nous	-
F20	5304453242		Harness,wiring ,cooktop		Appelez-nous	-
F21	5304453243		Harness,wiring ,ignitors				$ 301.70
F28	5304453244		Tubing Assembly,burner ,center Rear		Appelez-nous	-
F29	5304453245		Tubing Assembly,burner ,center Front		Appelez-nous	-
F3	5304453235		Tubing Assembly,burner ,right Front		Appelez-nous	-
F4	5304453236		Tubing Assembly,burner ,right Rear		Appelez-nous	-
F5	5304453237		Valve Assembly,w/switch ,right Rear		Appelez-nous	-
F6	5304453238		Valve Assembly,w/switch ,(2)				$ 339.06
F7	5304453239		Valve Assembly,w/switch ,left Front				$ 317.81
NI	5304446002		Jacket,ignitor Wire				$ 13.12
