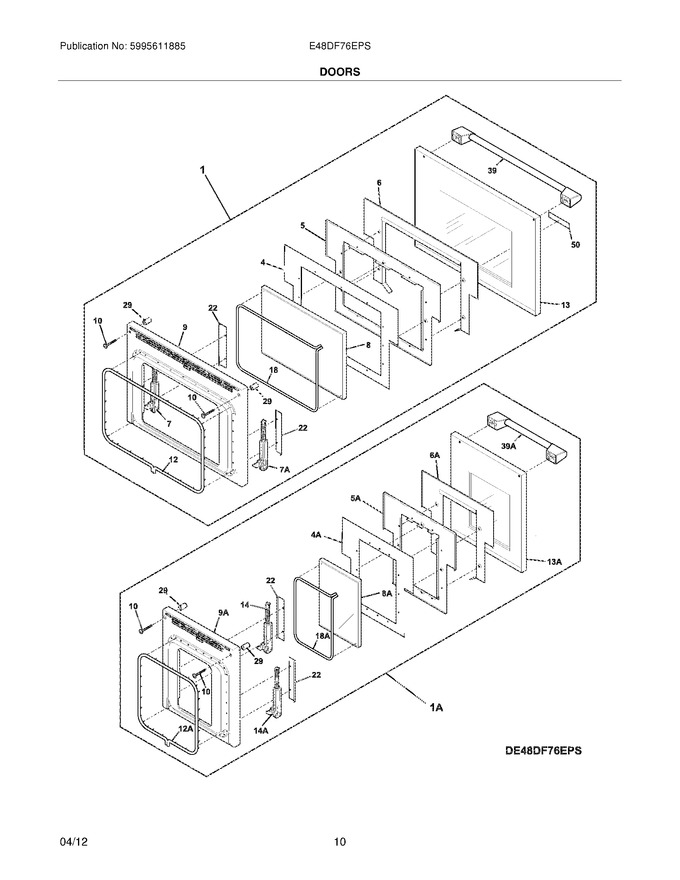

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304480610		Door Assembly,complete ,large Oven ,w/handle   (Replaces: 5304453265)		Appelez-nous	-
4	5304456544		Shield,heat ,lower ,large Oven		Appelez-nous	-
5	5304456545		Shield,heat ,inner ,large Oven		Appelez-nous	-
6	5304456546		Shield,heat ,outer ,large Oven		Appelez-nous	-
7	5304456516		Hinge,door ,rh ,large Oven				$ 265.24
8	5304456547		Glass,window Package ,large Oven		Appelez-nous	-
9	5304456548		Liner,door ,large Oven				$ 470.67
10	5304453264		Screw,handle Mtg.				$ 7.34
12	5304456550		Gasket,door ,large Oven				$ 253.97
13	5304456558		Door Skin,assembly ,large Oven				$ 912.27
14	5304456560		Hinge,door ,rh ,small Oven		Appelez-nous	-
18	5304456551		Gasket,glass Pack ,large Oven		Appelez-nous	-
22	5304456540		Bracket,hinge Cover ,(2)		Appelez-nous	-
29	5304456541		Spacer,handle ,(4)		Appelez-nous	-
39	5304453267		Handle Assembly,w/endcaps ,large Oven		Appelez-nous	-
50	5304456542		Nameplate,electrolux ,(2)				$ 64.94
12A	5304456557		Gasket,door ,small Oven				$ 173.92
13A	5304456559		Door Skin,assembly ,small Oven		Appelez-nous	-
14A	5304456561		Hinge,door ,lh ,small Oven		Appelez-nous	-
18A	5304456562		Gasket,glass Pack ,small Oven		Appelez-nous	-
1A	5304453266		Door Assembly,complete ,small Oven ,w/handle		Appelez-nous	-
39A	5304453268		Handle Assembly,w/endcaps ,small Oven		Appelez-nous	-
4A	5304456552		Shield,heat ,lower ,small Oven		Appelez-nous	-
5A	5304456553		Shield,heat ,inner ,small Oven		Appelez-nous	-
6A	5304456554		Shield,heat ,outer ,small Oven		Appelez-nous	-
7A	5304456517		Hinge,door ,lh ,large Oven				$ 294.42
8A	5304456555		Glass,window Package ,small Oven		Appelez-nous	-
9A	5304456556		Liner,door ,small Oven				$ 460.70
NI	5304456543		Screw,wshr Hd ,no.8 X 1/2`` ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
