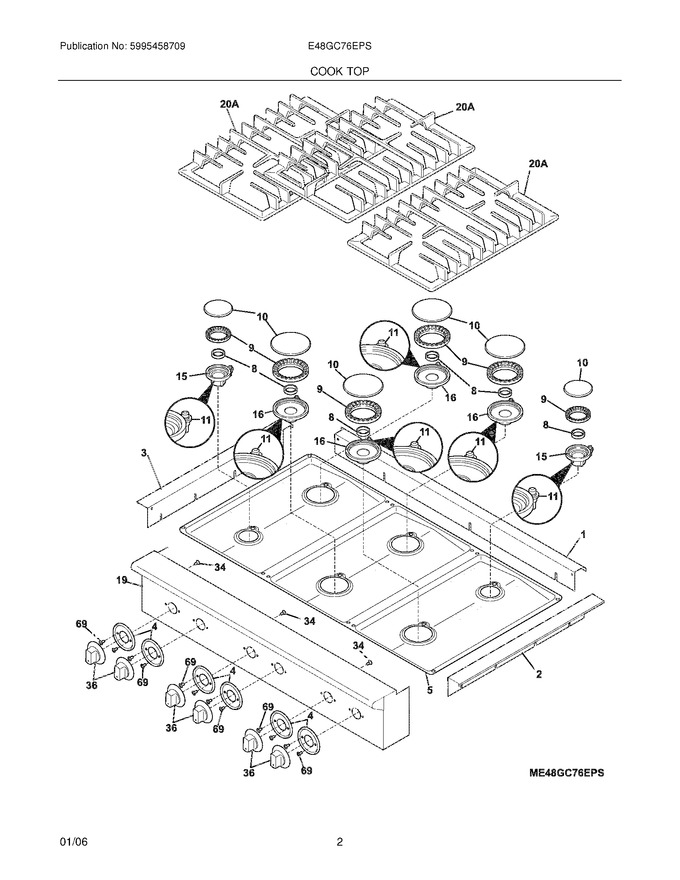

01 - Cover
03 - Maintop
05 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304454001 | Trim,rear |
|
- | |||||
| 2 | 5304454002 | Trim,side ,rh |
|
- | |||||
| 3 | 5304454003 | Trim,side ,lh |
|
- | |||||
| 4 | 5304446031 | Bezel,burner Knob |
|
$ 90.33 | |||||
| 5 | 5304454004 | Maintop,spill Tray |
|
$ 329.78 | |||||
| 8 | 5304446028 | Nut,burner Head ,brass |
|
$ 69.93 | |||||
| 9 | 5304452881 | Rings,burner ,set Of 6 |
|
$ 464.94 | |||||
| 10 | 5304452880 | Caps,burner ,set Of 6 |
|
$ 378.74 | |||||
| 19 | 5304454006 | Panel,control ,stainless |
|
$ 606.24 | |||||
| 34 | 5304452454 | Screw,no.8 X .375`` |
|
$ 9.88 | |||||
| 36 | 5304452800 | Knob,top Burner |
|
$ 105.89 | |||||
| 69 | 5304452792 | Screw,mounting |
|
- | |||||
| 20A | 5304452878 | Grate,burner ,14`` |
|
$ 365.74 | |||||
| F11 | 5304453979 | Ignitor Assembly,burner ,w/jacket |
|
$ 200.21 | |||||
| F15 | 5304452825 | Burner Head Assy,``b`` ,8500 Btu ,w/ignitor |
|
$ 215.37 | |||||
| F16 | 5304452826 | Burner Head Assy,``d`` ,14000 Btu ,w/ignitor |
|
$ 288.13 | |||||
| NI | 5304454005 | Mounting Kit,to Cabinet |
|
- | |||||
| NI | 5304446002 | Jacket,ignitor Wire |
|
$ 13.12 |
