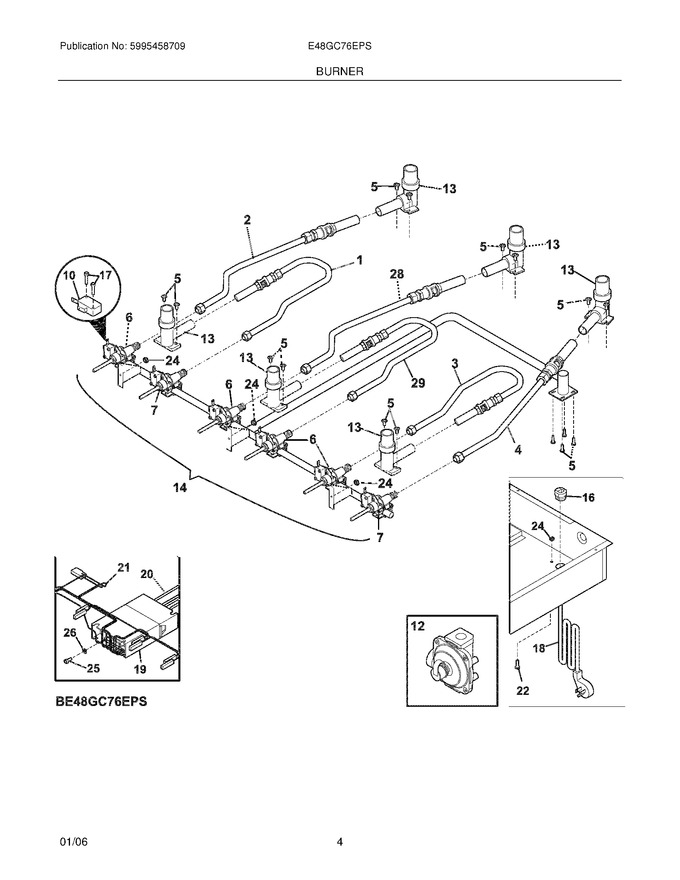

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5304446019		Screw,phil Trs ,no.8-3/8 ,(18)		Appelez-nous	-
16	5304446017		Bushing,strain Relief		Appelez-nous	-
17	5304446023		Screw,ignitor Switch		Appelez-nous	-
22	5304446021		Screw,phil Pan ,no.8-32 X 1/2 ,(3)		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
25	5304446020		Screw,phil Pan ,no.8-3/8		Appelez-nous	-
26	5304446016		Washer,nylon		Appelez-nous	-
F1	5304454007		Tubing Assembly,burner ,left Front		Appelez-nous	-
F10	5304446014		Switch,ignitor				$ 72.98
F12	5304446036		Regulator,pressure				$ 188.53
F13	5304446001		Base,burner ,(6)				$ 180.80
F14	5304454014		Manifold Assembly,w/valves		Appelez-nous	-
F18	5304446005		Cord,power Supply		Appelez-nous	-
F19	5304446143		Module,assembly ,ignitor Spark				$ 392.67
F2	5304454008		Tubing Assembly,burner ,left Rear		Appelez-nous	-
F20	5304454015		Harness,wiring ,main		Appelez-nous	-
F21	5304454016		Harness,wiring ,ignitors				$ 175.21
F28	5304454017		Tubing Assembly,burner ,center Rear		Appelez-nous	-
F29	5304454018		Tubing Assembly,burner ,center Front		Appelez-nous	-
F3	5304454009		Tubing Assembly,burner ,right Front		Appelez-nous	-
F4	5304454010		Tubing Assembly,burner ,right Rear		Appelez-nous	-
F6	5304454011		Valve Assembly,w/switch ,(4)				$ 128.68
F7	5304454012		Valve Assembly,w/switch ,(2)				$ 199.36
NI	5304457163		Lp Conversion Kit		Appelez-nous	-
NI	5304454013		Insulation		Appelez-nous	-
