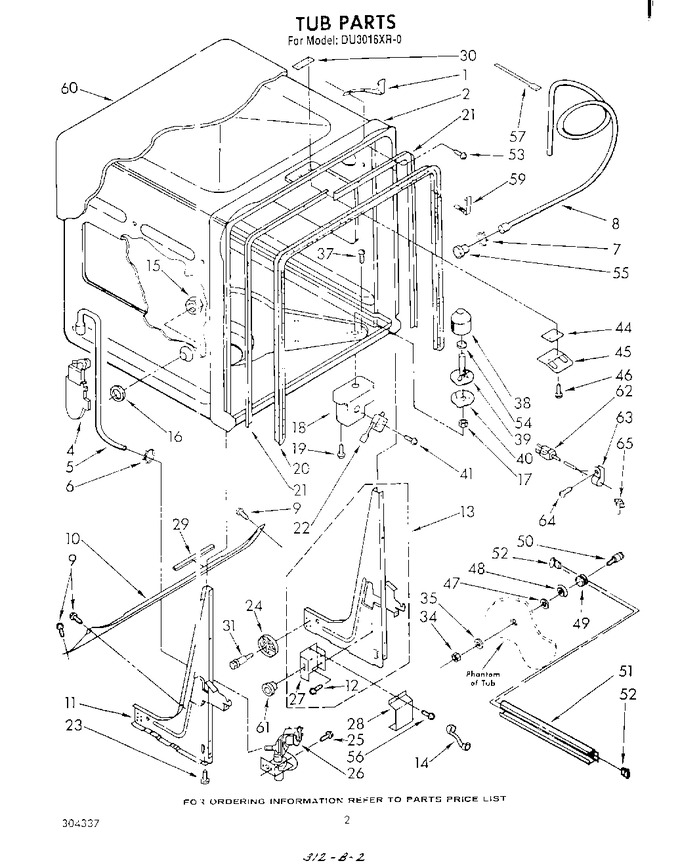

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300796		Bracket, Mounting (2)		Appelez-nous	-
2	303110		Tub Assembly		Appelez-nous	-
4	300974		Inlet, Water		Appelez-nous	-
5	304670		Hose, Inlet				$ 67.52
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	675544		Hose, Drain   (Replaces: 719954)			Immediately	$ 133.29
9	WP90767		Screw, 8a X 3/8 Hex Head Tapping (4)   (Replaces: 90767)			Immediately	$ 7.04
10	303111		Brace		Appelez-nous	-
11	302822		Leg & Hinge Assembly, L.h.		Appelez-nous	-
12	718178		Screw, 8-32 X 3/8 Hex Washer Head Slotted Tapping Ground (1)		Appelez-nous	-
13	302823		Leg & Hinge Assembly, R.h.		Appelez-nous	-
14	717563		Relief, Strain		Appelez-nous	-
15	713799		Nut, 7/8-16 Polypropylene (1)		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, 1/8 Self-threading (1)				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2 Hi-lo Blunt Point (3)		Appelez-nous	-
20	302091		Gasket (alternate)		Appelez-nous	-
20	302090		Gasket (alternate)		Appelez-nous	-
21	302093		Retainer (r.h.)		Appelez-nous	-
21	302094		Retainer (l.h.)		Appelez-nous	-
22	304589		Switch, Pressure (alternate)		Appelez-nous	-
22	301672		Switch, Pressure (alternate)		Appelez-nous	-
22	301671		Switch, Pressure (alternate)		Appelez-nous	-
23	8193716		Leveling Leg   (Replaces: 302849)			Immediately	$ 76.25
24	302819		Wheel, Leg				$ 5.65
25	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
26	DW-66		Valve, Water Inlet (alternate)   (Replaces: 300453)				$ 63.58
26	303650		Valve, Water Inlet (alternate)				$ 76.90
27	300067		Box, Terminal		Appelez-nous	-
28	300068		Cover, Terminal Box				$ 30.14
29	303294		Edge Protector		Appelez-nous	-
30	303080		Nut, Twin Spring		Appelez-nous	-
31	302818		Screw, Shoulder		Appelez-nous	-
34	718829		Locknut, 10-32 (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2 Pan Head Tapping (1)   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	302203		Screw, 4-40 X 9/16 Hex Head Slotted Thread Cutting (1)		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 9416643)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Assembly (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	719266		Screw, 8-18 X 5/8 Indented Hex Head (10)		Appelez-nous	-
54	301662		Gasket (2)		Appelez-nous	-
55	301656		Insert, Cup-hose		Appelez-nous	-
56	WP90767		Screw, 8a X 3/8 Hex Head Tapping (1)   (Replaces: 90767)			Immediately	$ 7.04
57	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
59	301663		Clip, Gasket		Appelez-nous	-
60	W11086533		Sound Shield, Tub   (Replaces: 303457)			Immediately	$ 28.17
61	302770		Bushing		Appelez-nous	-
62	302764		Power Cord		Appelez-nous	-
63	596553		Clamp, Strain Releif		Appelez-nous	-
64	719266		Screw, 8 A X 3/8		Appelez-nous	-
65	770754		Wire Connector (2)		Appelez-nous	-
