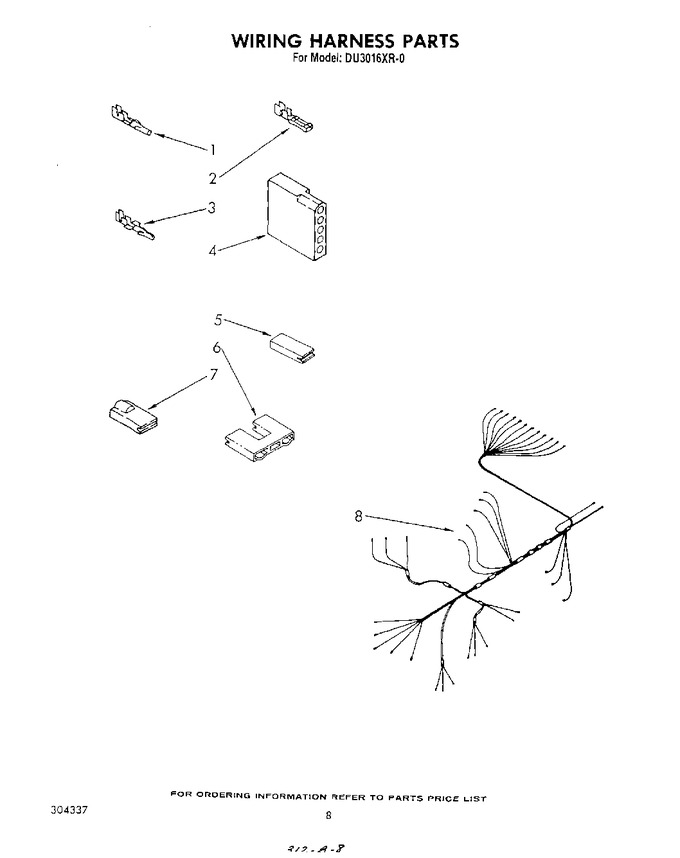

06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 6.90 | |||||
| 2 | 352088 | Terminal, Female |
|
$ 5.83 | |||||
| 3 | 94613 | Terminal |
|
- | |||||
| 4 | 719585 | Receptacle (5-circuit) |
|
- | |||||
| 5 | 301219 | Connector Block |
|
- | |||||
| 6 | 300708 | Connector, Block (alternate) |
|
- | |||||
| 6 | 374230 | Connector Block (alternate) |
|
- | |||||
| 7 | 358736 | Insulator .250 Terminal |
|
- | |||||
| 8 | 304678 | Harness, Wiring |
|
- |
