Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08012687 Humidistat Appelez-nous -
2 08016436 Guard-terminal Appelez-nous -
3 08016440 Bracket-control Appelez-nous -
4 3001801 Screw Appelez-nous -
5 3012345 Switch-fan Appelez-nous -
6 08016541 Bracket-switch Appelez-nous -
7 108A737H44 Screw-switch Appelez-nous -
8 08016435 Screw-control Appelez-nous -
9 08007481 Nut Special Order $ 5.81

10 3205742 Motor-fan Appelez-nous -
11 08016448 Blade-fan Appelez-nous -
12 A000264602 Clamp Appelez-nous -
13 08007473 Screw Appelez-nous -
14 08016449 Bracket-motor Appelez-nous -
15 08016540 Bracket-dampener Appelez-nous -
16 08016435 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

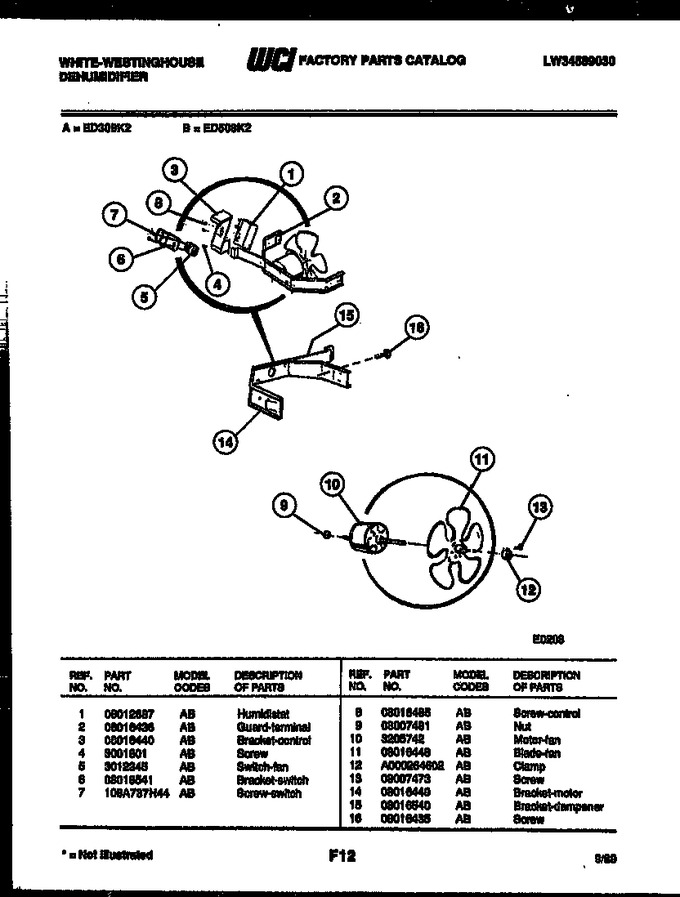

Diagram for ED508K2
