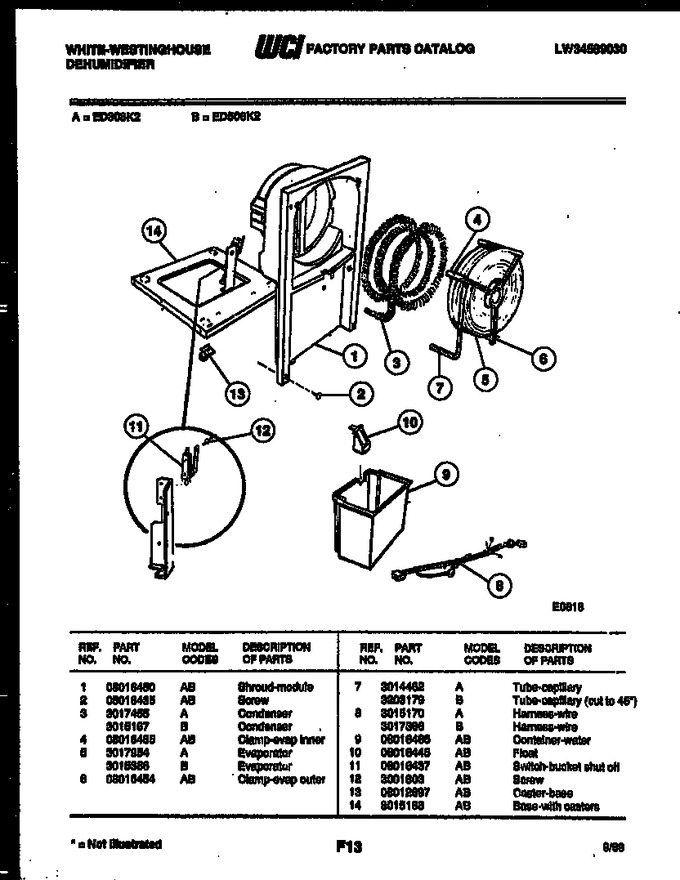

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud-module |
|
- | |||||
| 2 | 08016435 | Screw |
|
- | |||||
| 3 | 3015167 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp-evap Inner |
|
- | |||||
| 5 | 3015386 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp-evap Outer |
|
- | |||||
| 8 | 3017366 | Harness-wire |
|
- | |||||
| 9 | 08016465 | Container-water |
|
- | |||||
| 10 | 08016445 | Float |
|
- | |||||
| 11 | 08016437 | Switch-bucket Shut Off |
|
- | |||||
| 12 | 3001803 | Screw |
|
- | |||||
| 13 | 08012697 | Caster-base |
|
- | |||||
| 14 | 3015168 | Base-with Casters |
|
- | |||||
| 7A | 3203179 | Tube-capillary (cut To 45``) |
|
- |
