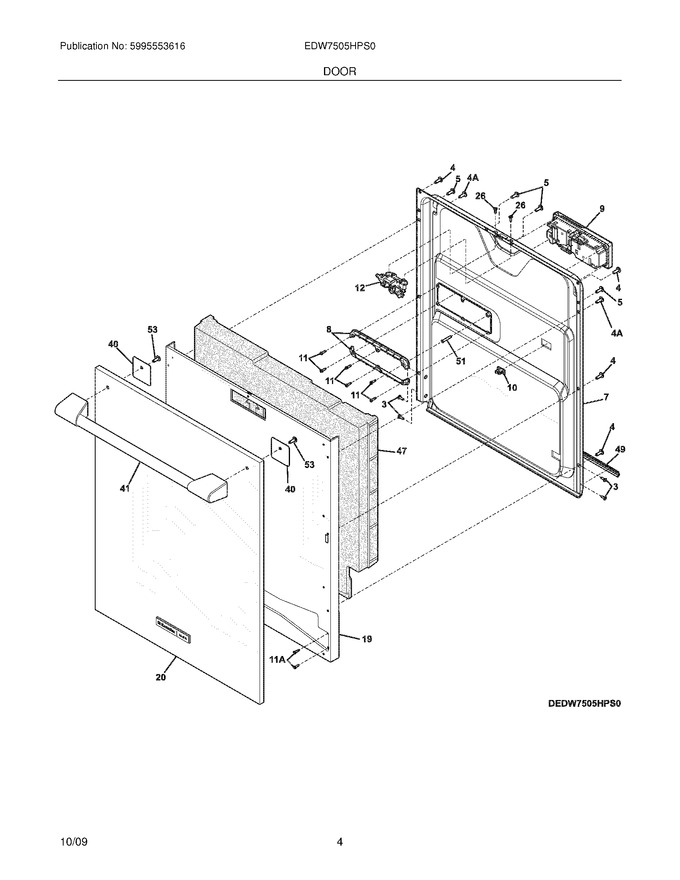

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	7154518201		Screw,6 Lobe Recess ,no.10-32 ,(4)		Appelez-nous	-
4	7154603802		Screw,low Profile ,truss ,(6)		Appelez-nous	-
5	7154603701		Screw,ph ,no.10-16 Hi-lo ,(6) ,6 Lobe		Appelez-nous	-
7	7154509701		Liner Assembly,door ,inner ,w/mastic		Appelez-nous	-
8	7154670901		Bracket,dispenser Mtg. ,(2)		Appelez-nous	-
9	7154574406		Dispenser,det/rinse Aid ,w/reed Switch		Appelez-nous	-
10	7154633501		Clip,wiring Harness		Appelez-nous	-
11	7154625702		Screw,ft Ph 6 Lobe ,no.8-18		Appelez-nous	-
12	154671402		Latch Assembly,door ,w/shield			Immediately	$ 96.88
19	7154603201		Frame,door Panel Mtg		Appelez-nous	-
20	7154795101		Door Assembly,outer ,stainless ,w/badge		Appelez-nous	-
26	7154519101		Screw,phlps Hd ,no.10-16 Hi Lo ,(4)		Appelez-nous	-
40	7154603401		Plate,handle Support ,(2)		Appelez-nous	-
41	7154743101		Handle Assembly,door ,stainless		Appelez-nous	-
47	7154746601		Moisture Barrier,assembly ,door ,w/data Sheet		Appelez-nous	-
49	7154610601		Gasket,door Bottom		Appelez-nous	-
51	7154320301		Clamp,drip Loop ,wire		Appelez-nous	-
53	7154693101		Screw,handle Mtg. ,10-32 ,(2)		Appelez-nous	-
11A	7154518301		Screw,6 Lobe Recess ,no.8-18		Appelez-nous	-
4A	7154603801		Screw,low Profile ,truss ,(6)		Appelez-nous	-
NI	7154735601		Screw,wood ,1.625`` ,(6) ,outer Panel		Appelez-nous	-
