SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks

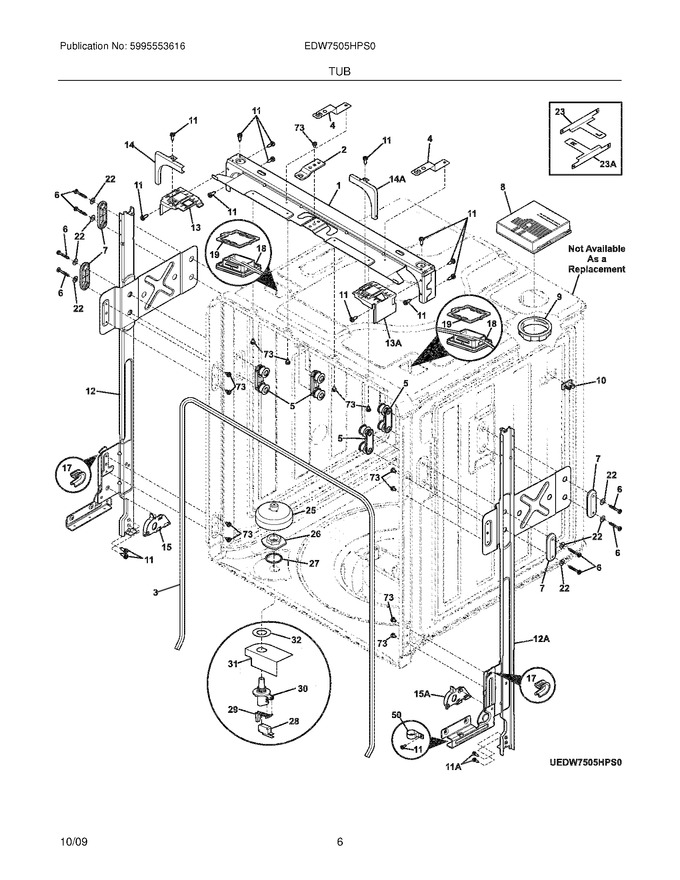

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7154500701		Brace,frame ,top		Appelez-nous	-
2	7154511401		Strike,door Latch		Appelez-nous	-
3	7154513401		Gasket,tub		Appelez-nous	-
4	7154657901		Clip,cabinet Mtg. ,top Mount ,(2)		Appelez-nous	-
5	7154510702		Roller Assembly,tub ,(4) ,w/gasket		Appelez-nous	-
6	7154719001		Screw,tub Roller ,(8)		Appelez-nous	-
7	7154510601		Plate,retainer ,outer ,(2) ,tub Roller		Appelez-nous	-
9	7154622601		Bezel,vent Assy ,upper		Appelez-nous	-
10	7154633501		Clip,wiring Harness		Appelez-nous	-
11	7154518301		Screw,6 Lobe Recess ,no.8-18		Appelez-nous	-
12	7154612901		Leg And Hinge Assembly,left Hand ,front		Appelez-nous	-
13	7154654401		Bracket,cabinet Clip ,lh		Appelez-nous	-
14	7154502901		Trim,corner ,lh		Appelez-nous	-
15	7154656801		Cover,hinge Arm ,lh		Appelez-nous	-
17	7154671501		Bushing,hinge Arm Cable ,(2)		Appelez-nous	-
19	7154751501		Clip,light Assembly ,(2)		Appelez-nous	-
22	75300809968		Washer		Appelez-nous	-
23	154654601		Clip,cabinet Mtg. ,lh   (Replaces: 7154654601)				$ 51.03
25	7154506702		Float,tub Flood		Appelez-nous	-
26	154506902		Nut,float Switch   (Replaces: 7154506902)				$ 15.18
27	154677201		Gasket,float Switch   (Replaces: 7154677201)				$ 8.94
29	154763901		Actuator,float Switch   (Replaces: 7154517001)				$ 49.16
30	154763901		Bracket,float Switch   (Replaces: 7154506601)				$ 49.16
31	7154657101		Shield,float Bracket		Appelez-nous	-
32	7154506801		Washer,float Switch		Appelez-nous	-
50	7154690101		Clamp,wiring		Appelez-nous	-
73	7154518401		Screw,6 Lobe Recess ,no.8-32		Appelez-nous	-
11A	134154100		Screw-no.10-32 X 3/8   (Replaces: 154200701)				$ 13.46
12A	7154613001		Leg And Hinge Assembly,right Hand ,front		Appelez-nous	-
13A	7154654501		Bracket,cabinet Clip ,rh		Appelez-nous	-
14A	7154502001		Trim,corner ,rh		Appelez-nous	-
15A	7154656901		Cover,hinge Arm ,rh		Appelez-nous	-
23A	7154654701		Clip,cabinet Mtg. ,rh		Appelez-nous	-
F18	7154693801		Light Assembly,complete ,and Harness ,w/two Lights		Appelez-nous	-
F28	154860901		Switch,float   (Replaces: 7154507001)				$ 103.38
F8	7154773401		Vent Assembly,upper		Appelez-nous	-
FNI	7154627701		Harness,wiring ,float Switch		Appelez-nous	-
NI	7154679701		Clip,insulation ,(2)		Appelez-nous	-
NI	7154691601		Cover,connector ,vent Assy		Appelez-nous	-
NI	7154657201		Screw,cabinet Clip ,(2)		Appelez-nous	-
NI	7154662101		Cabinet Seal Kit		Appelez-nous	-
NI	7154688801		Seal,tub Corner ,lh Lower		Appelez-nous	-
NI	154733001		Seal,tub Corner ,rh Lower   (Replaces: 7154688901)				$ 21.97
NI	7154623602		Insulation,blanket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
