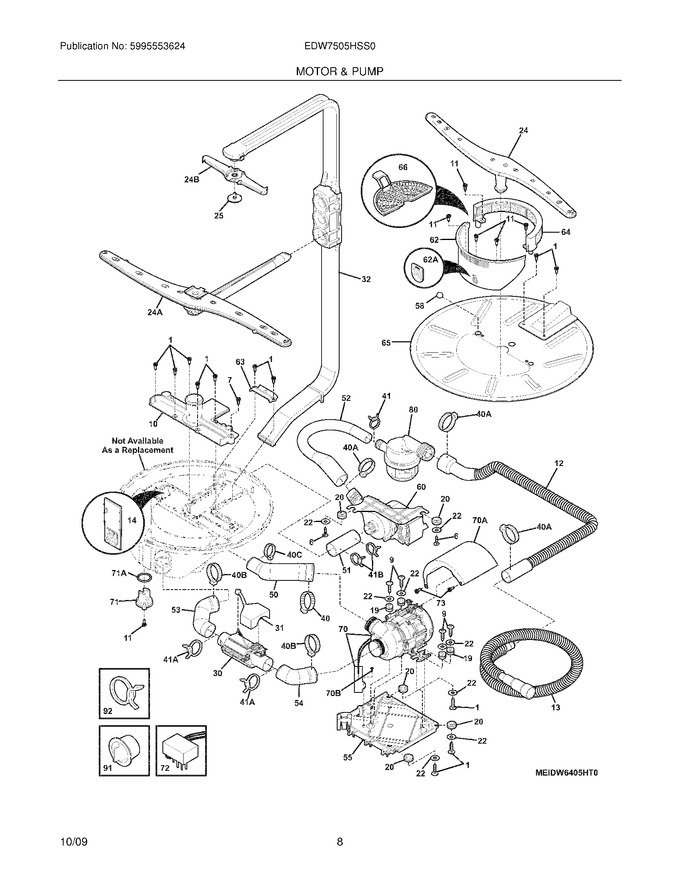

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154518001		Screw,pan Head ,no.10-16 X .8``   (Replaces: 7154518001)				$ 10.54
6	7154518301		Screw,6 Lobe Recess ,no.8-18		Appelez-nous	-
7	7154673501		Screw,6 Lobe Recess ,no.10 Hi Lo		Appelez-nous	-
9	7154625701		Screw,no.8-18 Hi Lo		Appelez-nous	-
10	7154602001		Support,lower Spray Arm		Appelez-nous	-
11	75303316032		Screw,truss Ss ,8 .625 ,(7)		Appelez-nous	-
12	7154654801		Hose,drain ,intermediate		Appelez-nous	-
13	5304521094		Hose,drain ,main   (Replaces: 7154654901)			Immediately	$ 49.28
14	7154511801		Check Valve,assembly ,drain ,w/flapper		Appelez-nous	-
19	7154730301		Grommet,vibration ,(4)		Appelez-nous	-
20	7154740001		Grommet,vibration ,(5)		Appelez-nous	-
22	75300809968		Washer		Appelez-nous	-
24	154755502		Spray Arm,assembly ,lower				$ 40.48
25	7154650102		Pin,spray Arm ,upper		Appelez-nous	-
31	7154622901		Cover,inline Heater		Appelez-nous	-
32	7154515602		Tubing Assembly,delivery ,w/check Valve		Appelez-nous	-
40	7154692901		Clamp,hose ,1.64`` Open ,worm Gear		Appelez-nous	-
41	154348401		Clamp,hose ,red ,push Spring ,(3)   (Replaces: 7154348401)				$ 32.96
50	154679602		Hose,sump To ,motor ,circulation   (Replaces: 7154679602)				$ 35.71
51	154757702		Hose,sump To ,drain Pump				$ 12.01
52	7154622402		Hose,drain Pump ,to Drain Valve		Appelez-nous	-
53	7154653201		Hose,sump To ,inline Heater		Appelez-nous	-
54	7154653301		Hose,inline Heater ,to Motor		Appelez-nous	-
55	7154677101		Plate,motor Mounting		Appelez-nous	-
58	7154512401		Check Ball		Appelez-nous	-
62	7154600702		Filter Assembly,vertical ,w/flapper		Appelez-nous	-
63	7154513501		Cover,delivery Tube		Appelez-nous	-
64	7154604502		Filter Assembly,fine Soil ,pressurized		Appelez-nous	-
65	7154624901		Filter Assembly,coarse Soil ,w/chimney		Appelez-nous	-
66	154740901		Trap,glass				$ 23.36
73	7154518401		Screw,6 Lobe Recess ,no.8-32		Appelez-nous	-
91	7154676701		Plug,drain Hose		Appelez-nous	-
92	7154348502		Clamp,red ,hose		Appelez-nous	-
24A	7154508202		Spray Arm,assembly ,middle ,w/manifold		Appelez-nous	-
24B	7154649502		Spray Arm,assembly ,upper		Appelez-nous	-
40A	154380601		Clamp,hose ,1.5`` Open ,worm Gear ,(5)   (Replaces: 7154380601)				$ 73.71
40B	7154693001		Clamp,hose ,1.81`` Open ,(2) ,worm Gear		Appelez-nous	-
40C	7154692801		Clamp,hose ,1.27`` Open ,worm Gear		Appelez-nous	-
41A	154611101		Clamp,spring ,red ,(2)   (Replaces: 7154611101)				$ 12.05
41B	7154691501		Clamp,spring ,(2)		Appelez-nous	-
62A	7154511601		Flapper,drain Check		Appelez-nous	-
70A	7154656401		Shield,motor ,circulation		Appelez-nous	-
70B	7154614401		Screw,capacitor Mtg.		Appelez-nous	-
71A	154691901		O-ring,turbidity   (Replaces: 7154691901)				$ 42.66
F30	7154503701		Heater,inline ,water ,1200w		Appelez-nous	-
F60	154757901		Pump Assembly,drain ,w/bracket				$ 126.86
F70	7154614002		Motor & Pump Assy,circulation ,w/capacitor		Appelez-nous	-
F71	154473901		Sensor,turbidity   (Replaces: 7154473901)				$ 213.26
F72	154655901		Sensor,leak Detector   (Replaces: 7154655901)				$ 105.61
F80	154622001		Drain Valve,assembly ,stepper   (Replaces: 7154622001)				$ 186.52
FNI	7154627001		Harness,wiring ,turbidity		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
