SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Door


07 - Tub


09 - Motor & Pump


11 - Frame


13 - Racks

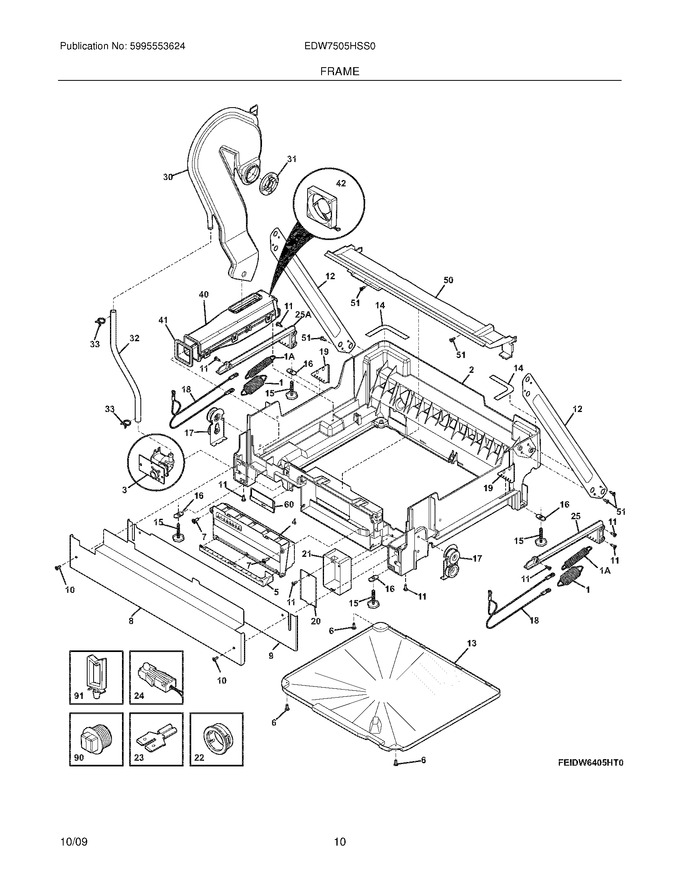

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7154696801		Spring,door ,main ,(2)		Appelez-nous	-
2	7154502601		Base,frame Mounting		Appelez-nous	-
5	7154624701		Bracket,control Housing		Appelez-nous	-
6	7154294701		Screw,no.7 Plas .375 ,(6) ,disp. Assy.		Appelez-nous	-
7	7154673501		Screw,6 Lobe Recess ,no.10 Hi Lo		Appelez-nous	-
8	154759606		Kickplate,stainless ,w/label				$ 87.15
9	7154679306		Toe Plate,adjustable ,stainless ,w/damper		Appelez-nous	-
10	7154697201		Screw,toe Plate Mtg ,8-18 X .39 ,stainless,(2)		Appelez-nous	-
11	7154518301		Screw,6 Lobe Recess ,no.8-18		Appelez-nous	-
12	7154501301		Frame,diagonal ,leg ,(2)		Appelez-nous	-
13	7154658101		Tray,base ,w/label		Appelez-nous	-
14	7154610301		Tape,connection ,(2) ,base To Tub		Appelez-nous	-
15	5304506540		Leg,leveling ,(4)   (Replaces: 7154571101)			Immediately	$ 10.85
16	7154515401		Plate,mounting ,(4) ,leveling Leg		Appelez-nous	-
17	7154738901		Bracket,pulley Assembly ,(2)		Appelez-nous	-
18	7154697101		Cable,hinge Pulley ,(2)		Appelez-nous	-
19	7154514901		Plate,adjustment ,(2) ,door Spring		Appelez-nous	-
20	7154658201		Cover,junction Box ,w/label		Appelez-nous	-
21	7154517501		Box,junction		Appelez-nous	-
22	7154610701		Grommet,electrical		Appelez-nous	-
23	7154671801		Connector,ground ,1 Female ,to 2 Male		Appelez-nous	-
25	7154696601		Bracket,door Spring ,rh		Appelez-nous	-
30	7154617901		Duct Assembly,side Drying ,w/gasket		Appelez-nous	-
31	7154618301		Cover,drying Inlet		Appelez-nous	-
32	154625001		Tubing,water Inlet   (Replaces: 7154625001)				$ 17.01
33	5304538466		Clamp-tubing,(2)   (Replaces: 5303318539)				$ 2.31
41	7154617801		Gasket,drying Duct ,lower		Appelez-nous	-
50	7154670401		Adaptor Plate,assembly ,w/foam		Appelez-nous	-
51	154518001		Screw,pan Head ,no.10-16 X .8``   (Replaces: 7154518001)				$ 10.54
60	7154622701		Cover,valve Service		Appelez-nous	-
90	7154679801		Plug,water Valve		Appelez-nous	-
91	7154692601		Clip,wiring		Appelez-nous	-
1A	7154696901		Spring,door ,secondary		Appelez-nous	-
25A	7154696701		Bracket,door Spring ,lh		Appelez-nous	-
F24	7154657501		Light Assembly,cleaning		Appelez-nous	-
F3	7154513601		Valve Assembly,water		Appelez-nous	-
F4	7154750502		Control Assembly		Appelez-nous	-
F40	7154617601		Duct Assembly,lower Drying ,w/motor		Appelez-nous	-
F42	7154619101		Motor,drying		Appelez-nous	-
FNI	7154654001		Harness,wiring ,base ,lh Side		Appelez-nous	-
FNI	7154688401		Harness,wiring ,rh Side ,base		Appelez-nous	-
NI	7154689201		Deflector,valve		Appelez-nous	-
NI	7154672301		Screw,6 Tri Lobe ,no.10 Ph ,(2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
