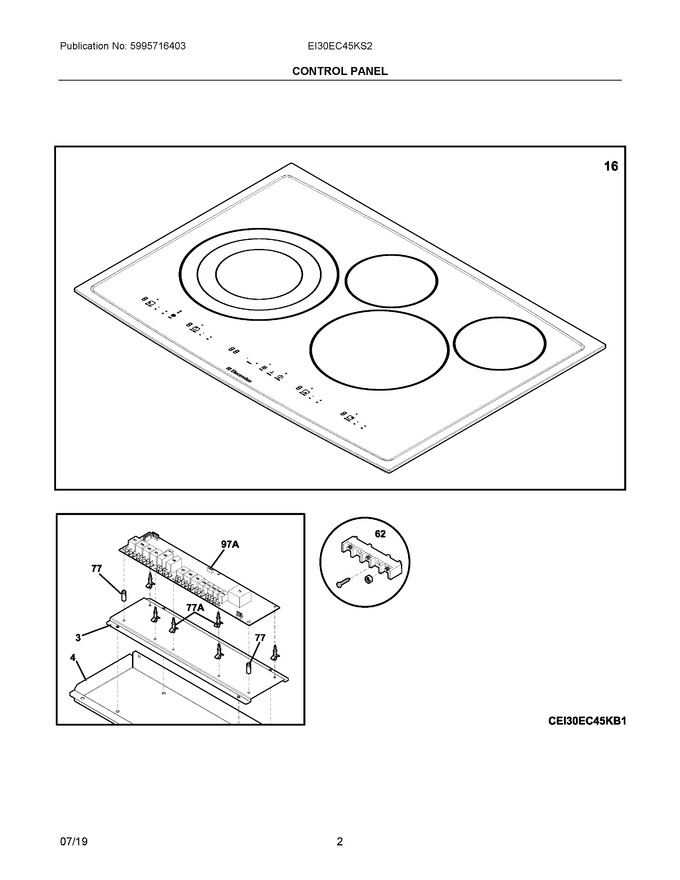

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318319207 | Deflector, Service Panel |
|
- | |||||
| 4 | 318381614 | Panel, Service |
|
- | |||||
| 16 | 318384318 | Maintop Assembly, Glass/steel, Black/stainless, W/touch Control |
|
$ 1,477.65 | |||||
| 62 | 5304409888 | Terminal Block (Replaces: 316056000) |
|
Immediately | $ 26.69 | ||||
| 77 | 318293702 | Spacer, Control |
|
$ 16.22 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 318939702 | Board, Relay |
|
$ 459.65 | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NI | 318578357 | Harness, Wiring, Communication |
|
$ 72.05 | |||||
| NI | 5303307980 | Screw, 8-32 X 0.437, (4) |
|
Immediately | $ 14.18 | ||||
| NI | 316459400 | Pad, Cleaning |
|
- | |||||
| NIA | 5303323139 | Screw, 10-24 X 0.906 |
|
$ 13.46 | |||||
| NIA | 5304401490 | Screw, 6-18 X 1, (2) |
|
- | |||||
| NIB | 316205500 | Nut, 10-32 (Replaces: 5303323144) |
|
$ 11.34 |
