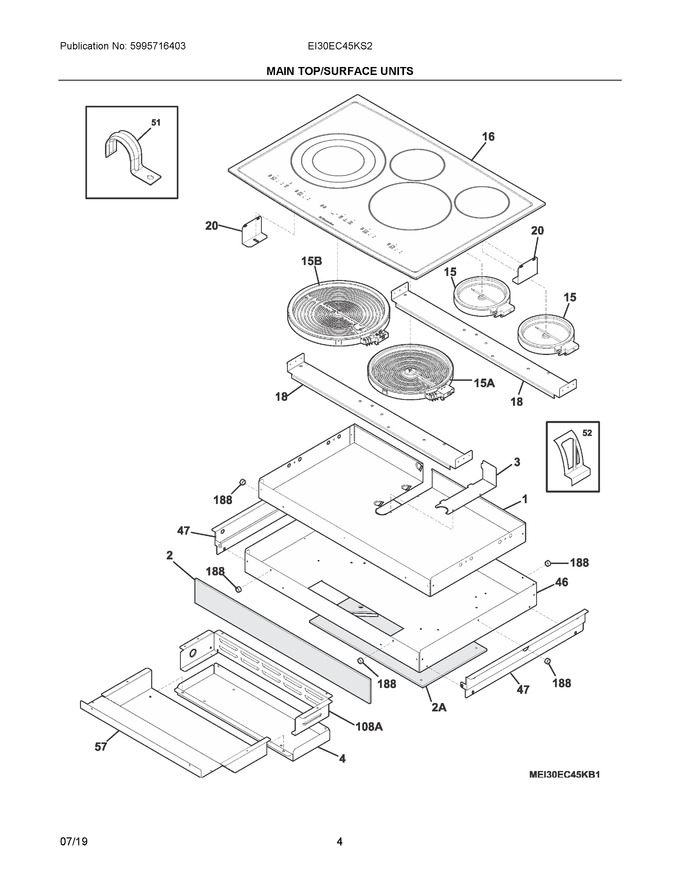

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318354158		Shield, Heat		Appelez-nous	-
2	318346073		Insulation, Front		Appelez-nous	-
3	318371418		Cover, Deflector		Appelez-nous	-
4	318381614		Panel, Service		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	318384318		Maintop Assembly, Glass/steel, Black/stainless, W/touch Control				$ 1,477.65
18	318381845		Bracket, Element Mtg., (2)		Appelez-nous	-
20	318121902		Bracket, Retainer				$ 47.03
46	318354027		Box, Burner		Appelez-nous	-
47	318345149		Deflector, Air		Appelez-nous	-
51	318389610		Bracket, Conduit Mtg.		Appelez-nous	-
52	5303317177		Spring, Element Mtg.				$ 12.74
57	318381613		Box, Service		Appelez-nous	-
188	318531702		Spacer				$ 9.93
108A	318380707		Bracket		Appelez-nous	-
15A	8583165300010		Element, Surface, 9", 3200w, Turbo Boil   (Replaces: 316530000)			Immediately	$ 76.06
15B	318297810		Element, Triple, 1200/2000/3000w, 6"/9"/12			Immediately	$ 356.54
2A	318330579		Insulation, Service Panel		Appelez-nous	-
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	5303300265		Screw, 8-18 X 1/2, (4)				$ 15.17
NI	5304401490		Screw, 6-18 X 1, (2)		Appelez-nous	-
NI	318394497		Box & Wires Assy				$ 111.75
NI	08016432		Screw, Truss Head, 8-18 X 3/8", (7)		Appelez-nous	-
NI	5304522497		Harness, Wiring, Main				$ 236.73
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
NIA	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
