01 - Cover Sheet

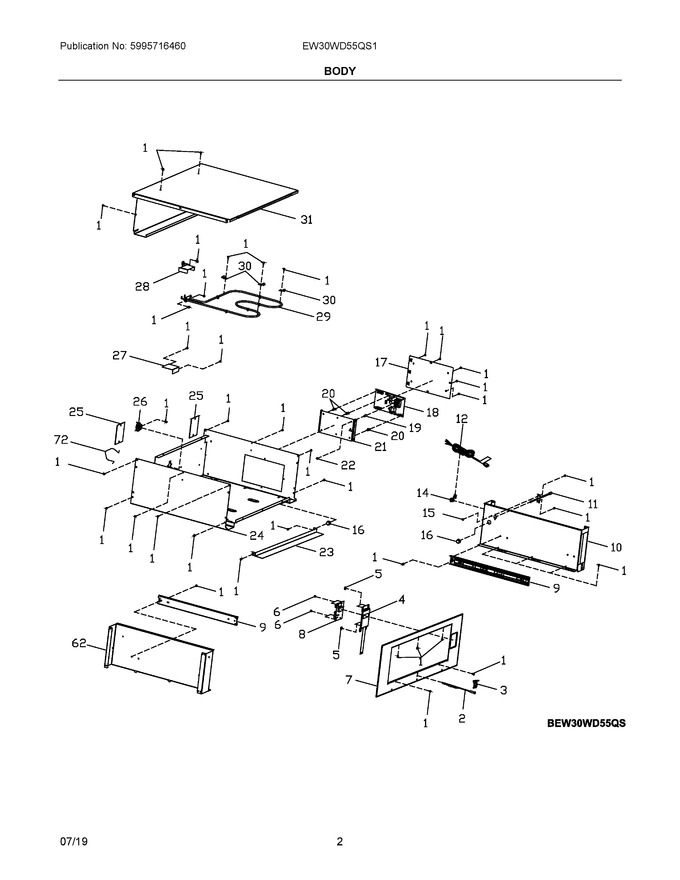

02 - Body


03 - Drawer


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	305309702		Screw, Phil, 4.2 X 9.5, (6)		Appelez-nous	-
2	318250408		Light, Indicator, Red		Appelez-nous	-
3	305611500		Clip, Light		Appelez-nous	-
4	318388101		Bracket Assembly, Display Board, W/overlay				$ 202.00
5	5303323000		Nut, Keps, 8-32, (4)		Appelez-nous	-
6	5304468081		Screw, 6-32 X 3/8", (4)				$ 9.92
7	318387600		Control Panel, Assembly, Front				$ 317.52
8	316517900		Board, Display				$ 264.83
9	318248410		Channel, Drawer Slide, Outer				$ 104.90
10	807221601		Shield, Side Panel, Rh		Appelez-nous	-
11	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
12	318144005		Cord, Service				$ 23.99
14	305532205		Bushing, Strain Relief		Appelez-nous	-
15	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
16	305494200		Bushing, Cable		Appelez-nous	-
17	318310108		Panel, Service		Appelez-nous	-
18	316517800		Board, Control, Display Realy				$ 252.17
19	318293702		Spacer, Control				$ 16.22
20	305560900		Clip, Control, (4)		Appelez-nous	-
21	318310701		Bracket, Mounting				$ 80.80
22	5304400427		Screw, 6-20 X 1", (2)		Appelez-nous	-
23	318378603		Shield, Wire		Appelez-nous	-
24	807319601		Wrapper, Drawer		Appelez-nous	-
25	318388000		Bumper, Absorber, Felt, (2)		Appelez-nous	-
26	318005114		Thermostat, Safety				$ 46.10
27	318399000		Shield, Wire		Appelez-nous	-
28	807319701		Shield, Element, Terminals		Appelez-nous	-
29	318255301		Element, Warmer Drawer				$ 105.42
30	316095800		Clip, Hold Down, (3)				$ 9.93
31	318281508		Wrapper, Upper		Appelez-nous	-
62	807221801		Shield, Side Panel, Lh		Appelez-nous	-
72	202855101		Holder, Cable				$ 1.42
NI	5304522502		Wiring Harness, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
