SELECT A DIAGRAM

01 - Cover Sheet


02 - Body

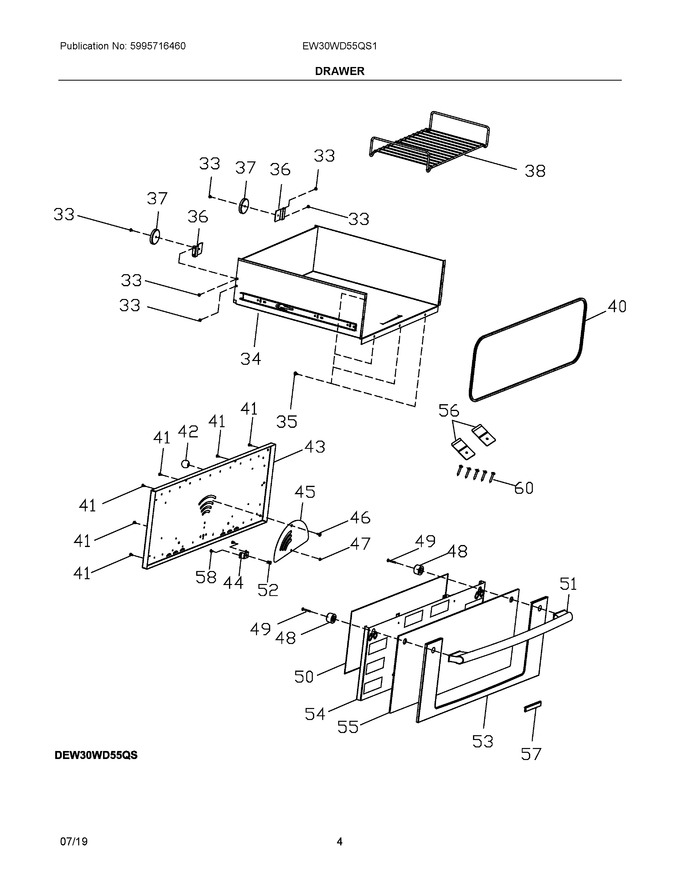

03 - Drawer


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	305338504		Screw, M4 X 5 Mm, (6)		Appelez-nous	-
34	808248901		Drawer Assembly, W/glides				$ 455.81
35	5304415832		Screw, 8-18 X 13/32", (7)		Appelez-nous	-
36	808499901		Bracket, Magnet Mtg., (2)		Appelez-nous	-
37	318373201		Magnet, Drawer, (2)				$ 5.99
38	807328301		Rack, Warmer Drawer   (Replaces: 318345601)				$ 87.21
40	318254405		Gasket, Warmer Drawer				$ 171.71
41	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
42	318251100		Handle, Control, Humidity		Appelez-nous	-
43	5304492916		Liner, Drawer, Inner		Appelez-nous	-
44	807222101		Bracket, Lens		Appelez-nous	-
45	807393601		Panel, Humidity Cntl		Appelez-nous	-
46	5304443138		Screw, 10-24 X 3/8		Appelez-nous	-
47	305616000		Rivet, Humidity Panel		Appelez-nous	-
48	808499601		Spacer, Handle, (2)		Appelez-nous	-
49	305615703		Screw, Handle Mtg., 10-24 X 2", (2)		Appelez-nous	-
50	305619900		Gasket, Inner Door		Appelez-nous	-
51	316380802		Handle, Door, Stainless				$ 250.86
52	318378201		Lens, Light		Appelez-nous	-
53	5304492914		Trim, Drawer, Stainless, Outer		Appelez-nous	-
54	5304492915		Weld Assembly, Support, Glass		Appelez-nous	-
55	5304492913		Glass, Drawer, Outer		Appelez-nous	-
56	318247403		Bracket, Wall, (2)		Appelez-nous	-
57	241873301		Badge, Electrolux   (Replaces: 316517505)				$ 11.15
58	08016432		Screw, Truss Head, 8-18 X 3/8", (7)		Appelez-nous	-
60	305376110		Screw, St4.8 X 31.75, (4)		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51

    View Diagram in Separate Window       Print Part List
