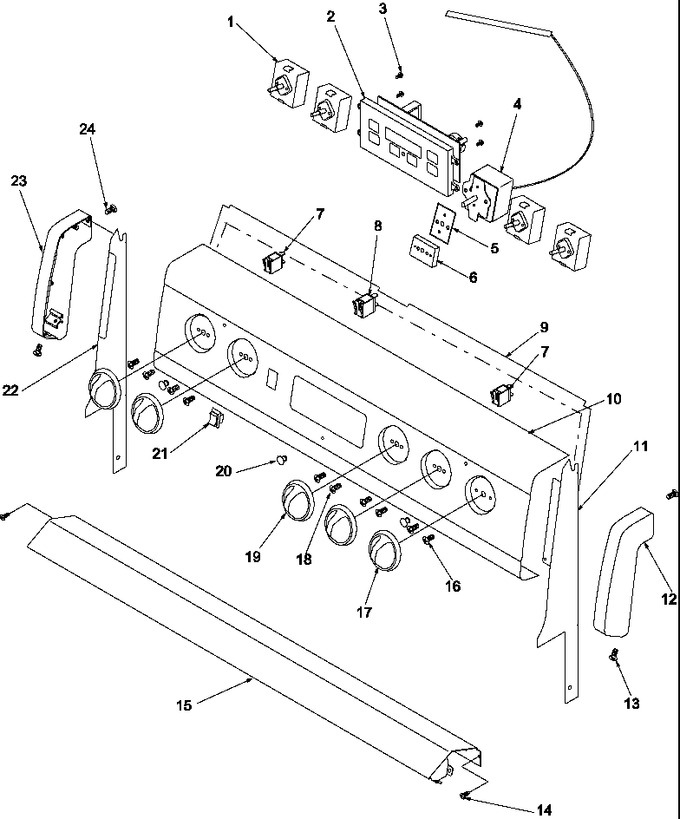

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP74011243		Switch, Infinite   (Replaces: Y0315563)				$ 115.88
2	315568L		Assy, Mylar & Clean Timer		Appelez-nous	-
3	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
4	Y0316972		Thermostat, Sc Elec		Appelez-nous	-
7	31722801		Light, Indicator (125v)		Appelez-nous	-
8	31722802		Light, Indicator (250v)		Appelez-nous	-
9	0315887		Cover, Upper Rear		Appelez-nous	-
11	315876L		Bkgd. Support-rh		Appelez-nous	-
12	315841L		End Cap-metal Bkgd Rh		Appelez-nous	-
13	Y0061164		Screw No.8 - 18 X .250		Appelez-nous	-
14	Y0041807		Screw No.8abx1/4 Ph Hd		Appelez-nous	-
15	31722702B		Shield, Bkgd Trim Heat		Appelez-nous	-
16	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
17	315845L		Knob, Infinite Switch (alm)		Appelez-nous	-
19	315968L		Knob, Thermostat (alm)		Appelez-nous	-
20	Y0316265		Lens, Indicator		Appelez-nous	-
21	301491L		Switch, Rocker (almond)		Appelez-nous	-
22	315877L		Bkgd. Support-lh		Appelez-nous	-
23	315843L		End Cap Lh		Appelez-nous	-
24	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
NI	31750309		Screw, No.6-20 X .375 Pan Hd		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
