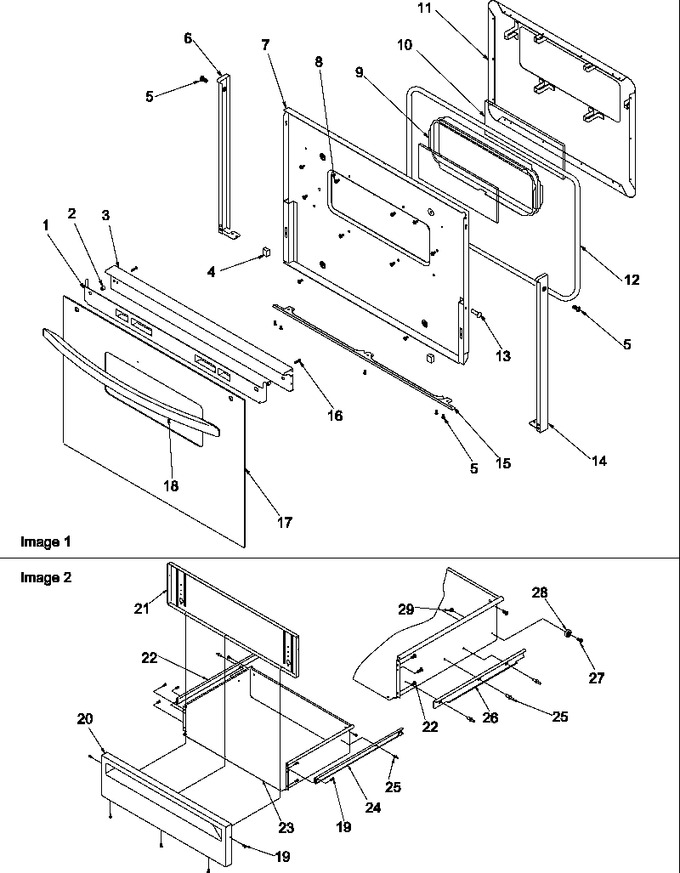

04 - Main Top


05 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316981L		Shield, Glass Heat (oven Door)		Appelez-nous	-
2	Y0309461		Bushing, Handle (nal)		Appelez-nous	-
3	31782103L		Trim, Door Top		Appelez-nous	-
4	Y0309627		Bumper, Rubber		Appelez-nous	-
5	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
6	309458L		End Cap, Lt (alm)		Appelez-nous	-
7	316978CG		Backer, Oven Door (sm Window)		Appelez-nous	-
8	Y0309016		Screw, No.8-18 X 3/8 P Hex Wsh T		Appelez-nous	-
9	Y0316975		Frame, Window Pack		Appelez-nous	-
10	Y0316974		Glass, Double Coated		Appelez-nous	-
11	316976CG		Pad, Door (enameled)		Appelez-nous	-
12	31715902		Gasket, Oven Door (67``)				$ 13.97
13	Y0302648		Rivet, Pop		Appelez-nous	-
14	309457L		End Cap, Rt (alm)		Appelez-nous	-
15	309460L		Support, Glass (alm)		Appelez-nous	-
16	31750518		Screw, No.10-32 X 1.250`` Pan Hd		Appelez-nous	-
17	315943L		Glass, Oven Door		Appelez-nous	-
18	31689502L		Handle, Oven Door (alm)		Appelez-nous	-
19	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
20	309177L		Panel, Drawer (alm)		Appelez-nous	-
21	309179B		Liner, Drawer Panel (blk)		Appelez-nous	-
22	0314664		Runner Storage Dwr-lh		Appelez-nous	-
23	316253W		Drawer, Storage (wht)		Appelez-nous	-
24	Y0314665		Runner Storage Dwr-rh		Appelez-nous	-
25	Y0076357		Rivet, Pop		Appelez-nous	-
NI	0062614		Insulation,door-sub Backer		Appelez-nous	-
NI	Y0309434		Label, Cleaning Caution Fr/eng		Appelez-nous	-
